| Tên thương hiệu: | Sinuo |
| Số mẫu: | SN553-EV211VT30VCS-2 |
| MOQ: | 1 |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 10 Sets Per Month |

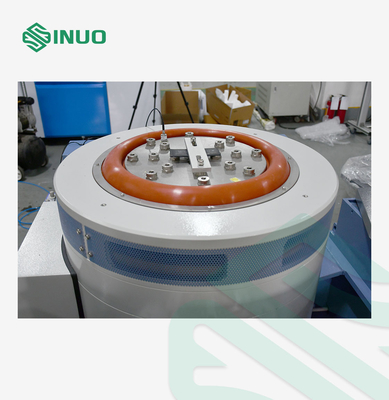

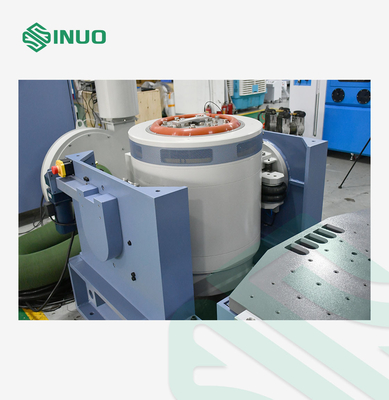

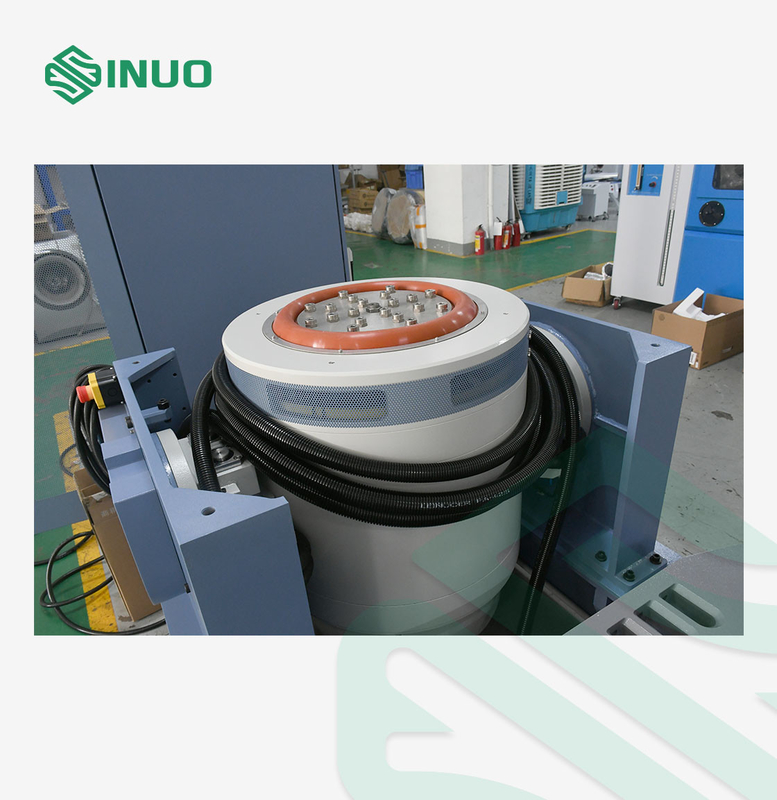

Vertical Electromagnetic Vibration Test System for EV Components
Complied Standards & Clauses
Sinuo can provide you with the whole excitation and testing scheme, and prove the quality of the products for you according to national and international standards, such as GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM,IEC62133 UN38.3 UL2054 IEC 60086 ECE R100., etc.
Product Overview
Designed for Precision Vibration Simulation Across Automotive, Aerospace, Electronics & Industrial Sectors
This high-performance Electromagnetic Vibration Testing System is engineered to simulate real-world mechanical shock, vibration fatigue, and transportation environments for critical components. Whether you're testing EV battery packs, automotive control units, aviation electronics, or circuit boards, this system ensures your product's durability and reliability under ISO, MIL-STD, GB, and ASTM standards.
Key Features & Benefits
Wide Frequency Range (1–3300Hz): Supports sine, random, and classical shock testing with optional extension up to 10,000Hz.
High Excitation Force: 1000Kg.f (sine & random), 2000Kg.f (shock), ideal for heavy payloads up to 300kg.
Large Displacement Capability: 51mm (p-p), allowing simulation of high-intensity shocks.
High Acceleration: Up to 100G, supporting rigorous reliability validation.
Digital Vibration Controller (VCS-2): Real-time closed-loop control via DSP processor with intelligent test software.
Quick Report Generation: Auto-export in Word/PDF with customizable test parameters & visual data.
Advanced Protection System: Built-in safety for overvoltage, overcurrent, temperature, displacement, and logic faults.

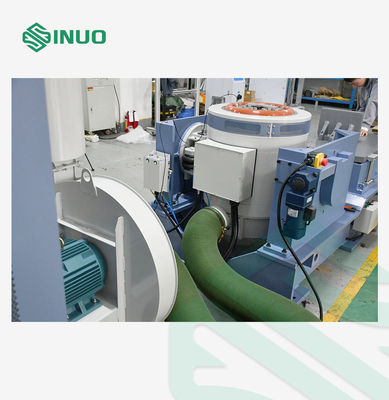

Noise-Controlled Cooling System: B402 silenced fan with enhanced airflow (18m³/min) for heat management.
Technical Parameters
| A11S24 electromagnetic excitation generator parameters | |
| Maximum sinusoidal excitation force | 1000Kg.f peak |
| Maximum Random Exciting Force | 1000Kg.f rms |
| Maximum impact excitation force | 2000Kg.f peak |
| Frequency Range | 1～3300 Hz |
| Maximum displacement | 51 mm p-p |
| Maximum speed | 2.0m/s |
| Maximum acceleration | 100G |
| First-order resonant frequency | 2500 Hz±5% |
| Payload | 300 kg |
| Vibration isolation frequency | 2.5 Hz |
| Moving coil diameter | Ф240 mm |
| Electric drive weight | 11kg |
| Screw on the table | 17×M10 |
| Flux leakage | < 1 mT (10 Gauss) |
| Allowable eccentric moment | 500N.m |
| Equipment size | 915mmx740mmx785mm (excluding extended table) |
| Equipment weight | 880Kg (Excluding horizontal slide table) |
Details
