| Tên thương hiệu: | Sinuo |
| Số mẫu: | SN772 |
| MOQ: | 1 |
| giá bán: | Customized |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 30 BỘ/THÁNG |
Flammability Glow Wire Test Equipment Glow Wire Tester IEC 60695
Complied Standards & Clauses
This device is manufactured according to the standard of IEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13, it is required by IEC 60598 Clause 13.3.2., UL746A, etc.
Equipment Overview

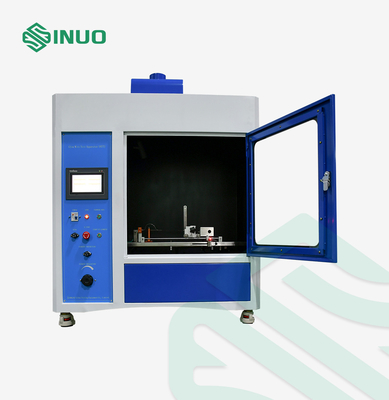

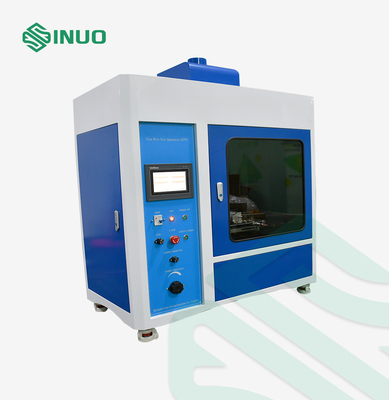

The SN772 Glow Wire Test Apparatus is a specialized testing instrument designed to simulate thermal stress caused by glowing components or ignition sources, such as overloaded resistors or heated elements, in a short time. It complies with international safety standards such as IEC 60695 series, UL746A,and IEC 60598, making it suitable for testing the ignitability and fire resistance of electrical and electronic products, plastic materials, and components used in household appliances.
Featuring PLC control and a 7-inch touchscreen interface, SN772 ensures accurate temperature control, intuitive operation, and precise positioning via a digital stepper motor. The device allows researchers and manufacturers to conduct reliable glow wire ignition and flammability tests with enhanced repeatability and efficiency.
Technical Parameters
|
Parameter |
Specification |
|---|---|
| Model | SN772 |
| Standards | IEC 60695-2-10/11/12/13, UL746A, IEC 60598, IEC 60335 |
| Control System | PLC integrated with 7-inch color touchscreen |

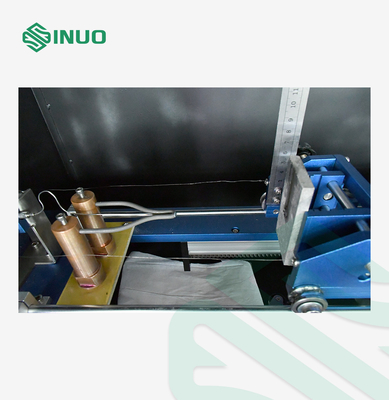

| Glowing Element | Φ4mm ± 0.04mm Ni/Cr (77/20), ring-shaped, horizontal position |
| Thermocouple | K-type (B+B USA), armored, temp resistance 1100°C |
| Temperature Range | 500°C–960°C |
| Temperature Accuracy | ±10%, fluctuation <3°C |
| Temperature Sensing Delay | 1.7 seconds |
| Thermostat Accuracy | 12-bit A/D ±0.05% |
| Specimen Pressure | 0.95N ± 0.1N (adjustable) |
| Max Heating Depth | 7mm ± 0.5mm |
| Specimen Travel Speed | ~13mm/s |
| Testing Time | 30s ± 0.1s (adjustable from 1–999.9s) |
| Ignition Bedding Board | 10mm white pine + 12–30g/m² silk paper |
| Test Site Volume | ≥0.5m³, black background, illuminance ≤ 20 Lx |
| Dimensions | 1130mm × 600mm × 1400mm |
| Weight | 115 kg |
| Power Supply | AC 230V ±10%, 60Hz, single-phase |
| Exhaust Port Diameter | 100mm |
Details
