| Tên thương hiệu: | Sinuo |
| Số mẫu: | SN4410 |
| MOQ: | 1 |
| giá bán: | Customized |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 30 BỘ/THÁNG |

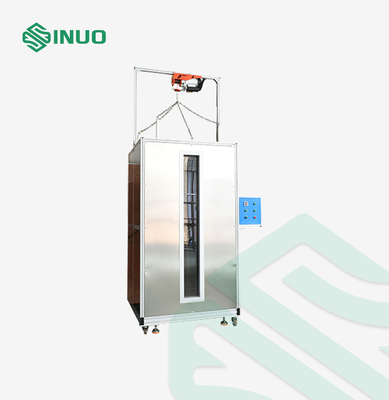

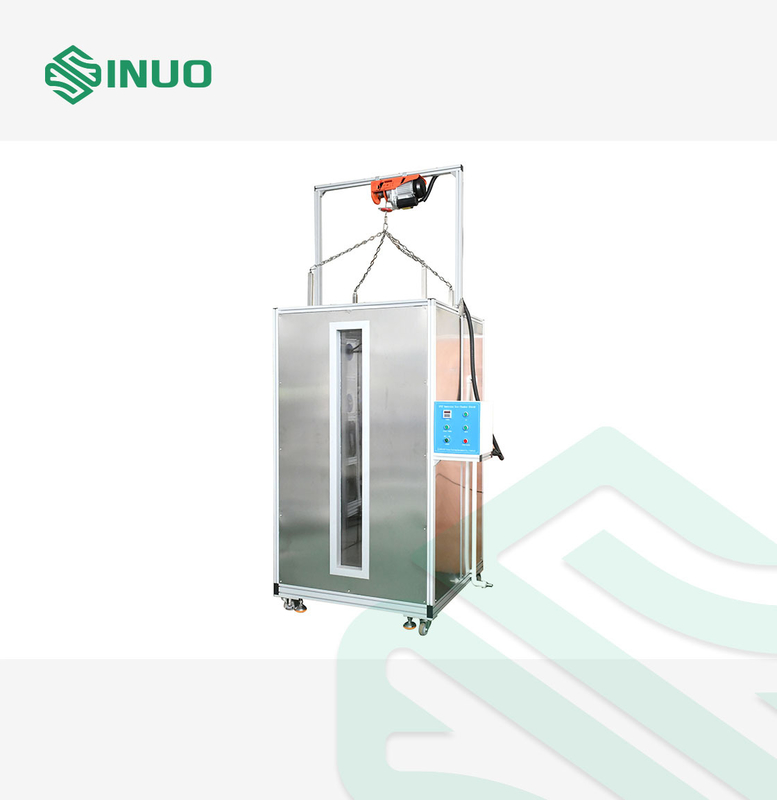

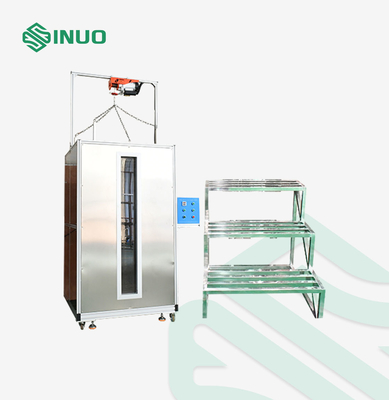

IPX7 Waterproof Test Chamber Waterproof Performance Testing Machine
Complied Standards & Clauses
IEC 60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60335-1, IEC60598-1.
Equipment Overview
This IPX7 waterproof testing device is designed in accordance with IEC60529 and related standards to evaluate the waterproof performance of electrical and electronic products under temporary immersion conditions. Ideal for R&D, quality control, and factory inspection.
Engineered for compliance with IPX7 requirements, this waterproof test chamber simulates immersion environments to verify the sealing performance of devices. Widely used in product development, certification testing, and production line quality checks.
Compliant with IEC60529, IEC60884-1, IEC60335-1, and IEC60598-1, this equipment enables precise IPX7 testing for a wide range of consumer electronics and electrical products. It helps manufacturers ensure waterproof reliability before market release.
Technical Parameters
| Chamber external size | Approximately W 750* D 750*H 2500mm (including casters) |
| Chamber inner size | Length 650* W 650* H1500mm |
| Max. test water depth | 1.2m |
| Observation window | Tempered glass (thickness: 12mm) |
| Observation window width | 200mm |
| Water level adjustment method | Water inlet / drain valve, manual adjustment |
| Water level display | Scale (accuracy 1mm) |
| External chamber material | Stainless steel plates + Aluminum profile frame |
| Inner chamber material | 2.0mm thickness stainless steel |

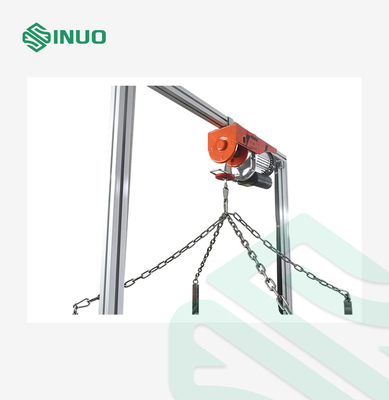

| Electric lifting basket | Made of stainless steel, controlled by electric hoist |

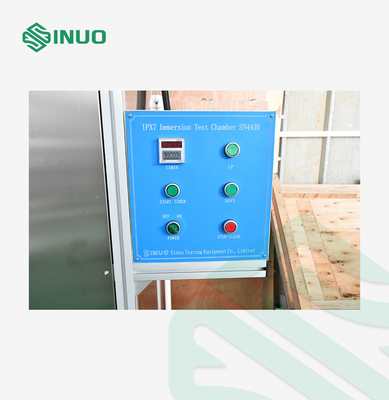

| Control method | Buttons (non-PLC) |
| Test time | 0.01 second-99.99hours can be preset |
| Immersion depth requirements |
The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water |
| Test content | IPX7 |
| Power supply | AC 220V,50Hz, 1KW |
Details
