Phòng thử nghiệm môi trường
Created with Pixso.

Compound Salt Spray Test Chamber Corrosion Test Equipment 1m³ Salt Fog Chamber

Compound Salt Spray Test Chamber Corrosion Test Equipment 1m³ Salt Fog Chamber

Tên thương hiệu: Sinuo
Số mẫu: SN8810C-1m³
MOQ: 1
Điều khoản thanh toán: T/T
Khả năng cung cấp: 10 bộ mỗi tháng
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
Calibration Certificate (Cost Additional)
Khối lượng bên trong danh nghĩa:
1m³
Dòng điện tối đa:
23A
Trọng lượng:
500kg
Khả năng chịu đựng:
80kg
Phạm vi nhiệt độ của bể bão hòa:
RT+5℃~70℃
Tổng công suất máy:
15KW
Không gian bên ngoài (mm):
1600×2400×2000 W×D×H
Kích thước hiệu dụng của hộp bên trong (mm):
1000×1000×1000 W×D×H
chi tiết đóng gói:
xuất khẩu đóng gói
Khả năng cung cấp:
10 bộ mỗi tháng
Mô tả sản phẩm




Compound Salt Spray Test Chamber Corrosion Test Equipment 1m³ Salt Fog Chamber



Complied Standards & Clauses




It can meet the national standard ISO 16750-4: 2006 Road vehicles Environmental conditions and tests for electrical and electronic equipment Part 4: Climatic loads clause 5.5 salt spray test.

Product Overview




Compound Salt Spray Test Chamber SN8810C-1m³ is an advanced corrosion testing system designed to simulate real-world environmental conditions that metallic materials are exposed to—especially in salt-contaminated outdoor atmospheres. It performs cyclic salt spray, dry, humid, and heat testing, offering a more realistic corrosion assessment than traditional NSS, AASS, or CASS tests. Ideal for automotive electronics, defense, and industrial component testing, this chamber ensures high accuracy, safety, and programmable control.



Technical Parameters




Item

Specification

Model SN8810C-1m³
Internal Volume 1 m³
Chamber Size (W×D×H) 1000×1000×1000 mm (effective), 600 mm roof height excluded
External Dimensions (W×D×H) Approx. 1600×2400×2000 mm
Weight Approx. 500 kg
Load Capacity Approx. 80 kg
Temperature Range (chamber) 20~70℃ (adjustable)
Humidity Range 30%RH~98%RH
Salt Spray Deposition 1~2 ml/h/80cm² (16h average)
Spray Pressure 70~170 KPa
Spray Modes Continuous / Cyclic / Programmed
PH Range Neutral: 6.5–7.2, Acid: 3.0–3.3
Power Supply AC 380V, 3-phase 4-wire, 50Hz
Total Power 15 KW
Max Current 23 A
Spray Principle Bernoulli spray + precision nozzle + automatic misting

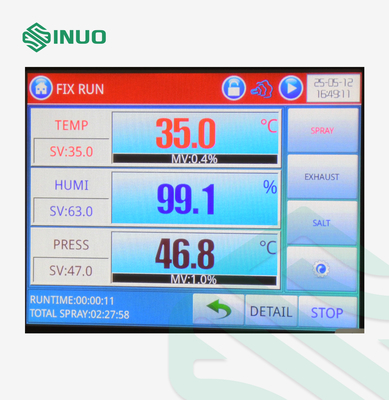

Controller 5.7” color touch screen, programmable (up to 120 programs)
Software Features Chinese/English switchable, auto record/save, graph curves
Communication RS-232 interface; PC data transfer supported
Heating Rate (chamber) RT → 60℃ ≤ 45 min
Heating Rate (saturated tank) RT → 65℃ ≤ 45 min
Refrigeration European compressor + R404a refrigerant
Spray Water Supply Manual filling with 5% NaCl solution
Humidity Control PID-controlled steam humidification
Standards Complied ISO 16750-4, ISO 9227, ASTM B117, IEC 60068-2-11, etc.
Safety Protection Over-temp, overload, leakage, power failure memory, etc.



Details

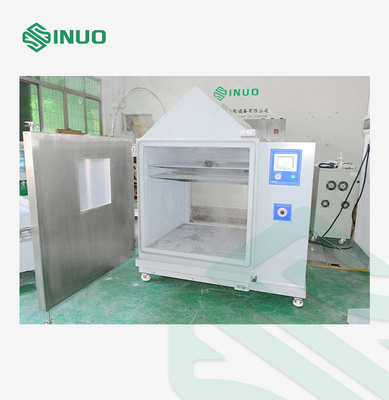

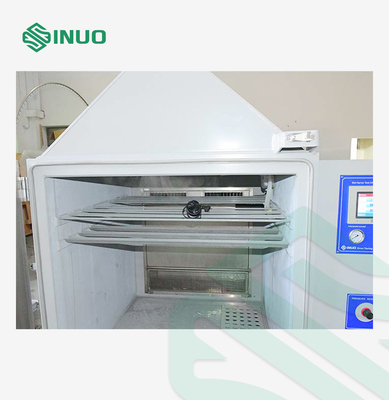

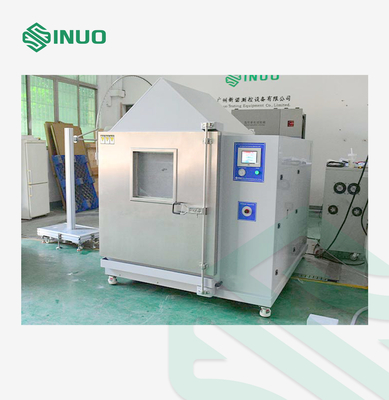

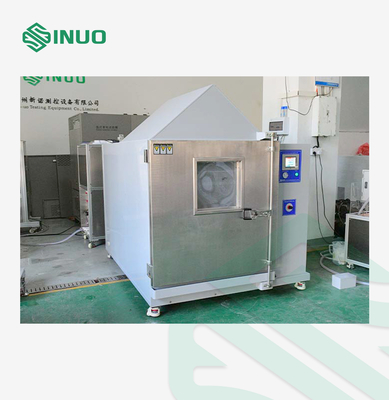

Compound Salt Spray Test Chamber Corrosion Test Equipment 1m³ Salt Fog Chamber 0Compound Salt Spray Test Chamber Corrosion Test Equipment 1m³ Salt Fog Chamber 1Compound Salt Spray Test Chamber Corrosion Test Equipment 1m³ Salt Fog Chamber 2
