| Tên thương hiệu: | Sinuo |
| Số mẫu: | SN1125-100A |
| MOQ: | 1 |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 10 bộ mỗi tháng |

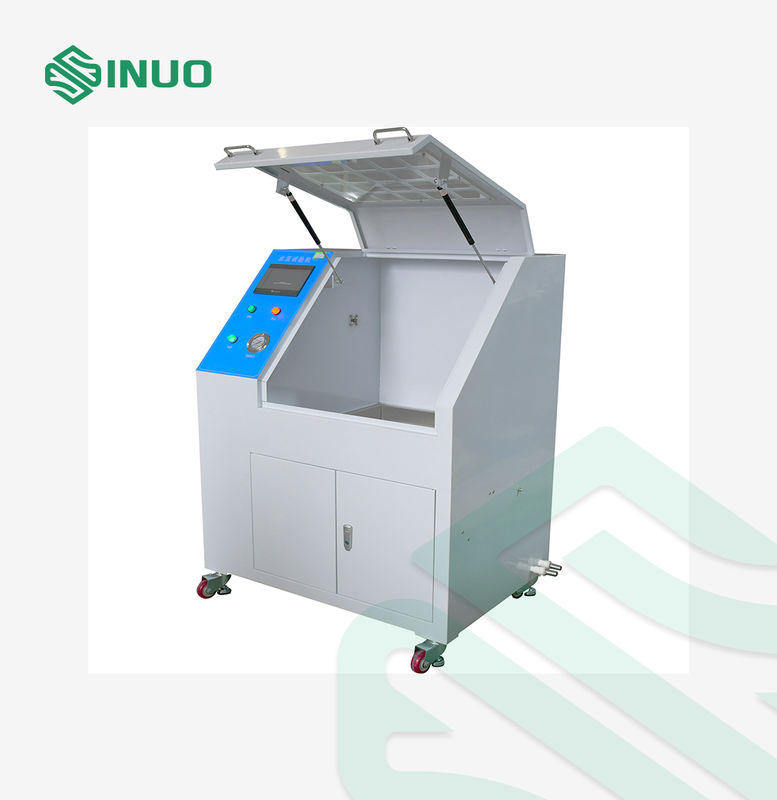

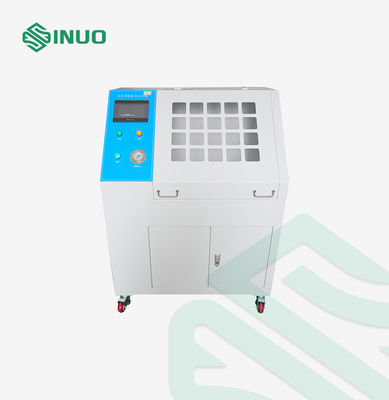

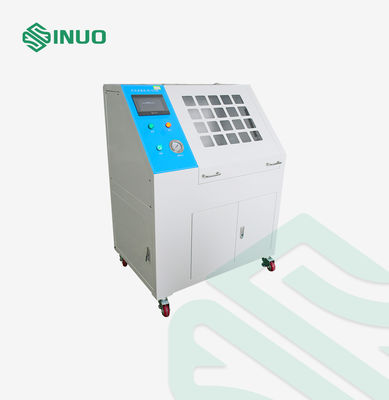

Automatic Hydraulic Pressure Testing System PLC Hydraulic Test Bench
Complied Standards & Clauses
It can meet the national standard IEC 60335-2-34, etc.
Product Overview

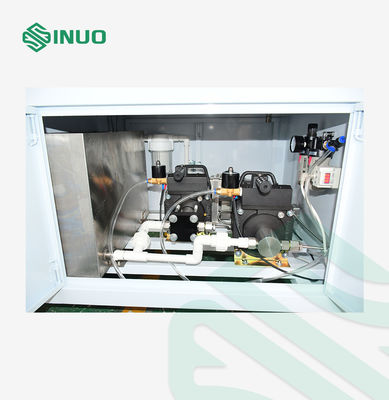

The PLC hydraulic test bench adopts gas-liquid proportional control, and the pressure source adopts the Sinuo series gas-liquid booster pump; a single gas-controlled non-balanced gas balanced gas distribution valve is used to realize the automatic reciprocating motion of the pump. The gas drive part of the pump body is made of aluminum alloy, and the aluminum alloy parts are oxidized to black after processing, ensuring the product's beautiful appearance and never rusting. The full set of pump seals are imported high-quality products, thus ensuring the performance of the pump, and the driving piston diameter is 160mm.
PLC control system and operating software:
PLC automatic control system:

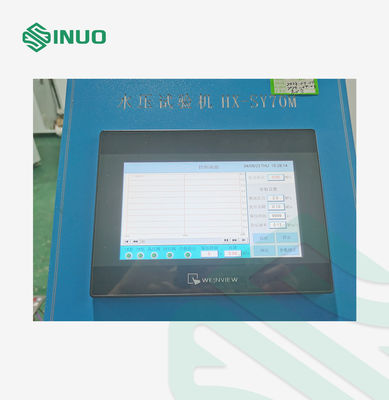

(1) The test process is displayed on the touch screen.
(2) Real-time detection of pressure changes and dynamic curve output.
(3) There is a special test program, and test data such as test pressure and test time can be set by yourself.
(4) The English operation interface is simple and convenient, and the control software is easy to update and maintain.
Recording function:
(1) Time pressure curve (standard configuration)
(2) Test time unit: s
(3) Pressure unit: MPa
Typical test procedures provided are:
①; Constant speed pressure increase - pressure maintenance - pressure relief
Technical Parameters
| Item | Specifications |
| Need air source | 0.2-0.8MPa, 0.6Nm3/min |
| High pressure | 1-100Mpa |
| Measurement accuracy | ±0.5%FS |
| Time of pressure maintenance | Arbitrary setting, with seconds as the timing unit |
| Data collection | Pressure Sensors |
| Peak record | Measurement and control software records |
| Test station | One |
| Exhaust system | Automatic |
| Test medium | Clean water |
| Output interface | ZG1/4 internal thread |
| Control system | PLC All-in-one Machine |
| Device size | 2000x800x1200mm |
Details
