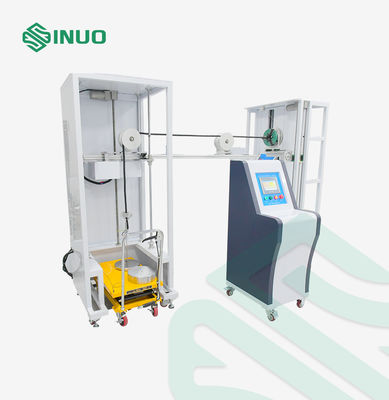

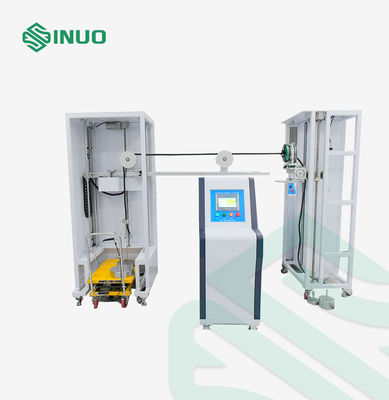

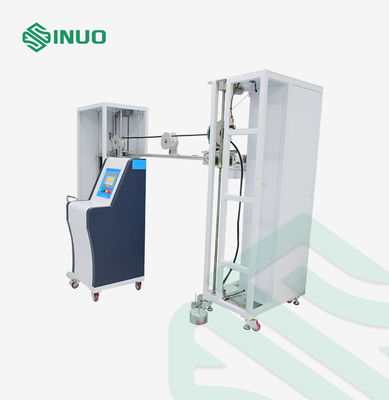

IEC 61851-23 EV Charging Station Cable Anchorage Pull Force & Torque Test Apparatus
Complied Standards & Clauses
It is designed and manufactured according to IEC 61851-23:2023 clause 11.6.102 and Figure 110, Figure 111 and Table 114.
Product overview

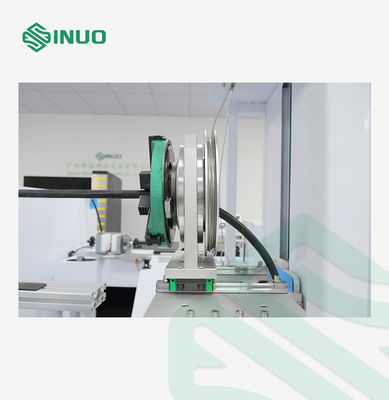

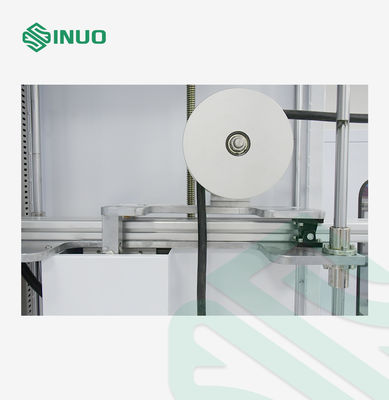

The pulling force is realized by using a motor to drive an eccentric wheel mechanism. The motor speed is adjustable to ensure that the pulling force is applied accurately each time. It is equipped with a monitoring function for the pulling force duration. Torque is applied by a motor-driven tray that lifts a weight; When the time is reached, the tray automatically resets the lifting weight and ends the application of torque.
Samples and restrictions: Electric vehicle AC and DC charging station.
The flexible cord anchorage of the appliance shall relieve conductors at the terminals from pulling force and torque. This device is used to test the ability of the cord anchorage or cable fixing device of EV AC/DC charging stations to withstand specified tensile force and torque.
Usage Environment:
Power supply: AC220V±10%/50-60Hz, 1KW; working temperature 0-40℃, humidity 30%-90%;
Dimensions: about W4000*D600*H1850mm; weight: about 300kg
Technical Parameter
| Additional configuration | The equipment features an adjustable fixture height ranging from 500 to 1200 mm (i.e., the cable outlet position), allowing it to meet the testing requirements of charging stations with different cable outlet positions. |
| Fixture | Universal clamp, one set |
| Torque application time | 0-99H59M59S,can be preset |
| Tensile frequency | 1 time/s, the actual pull time is detected by electrical signal |
| Pull cycles | 1-999999 cycles, can be preset, default is 100±1 cycles |
| Equipment structure schematic diagram | |
| Power failure protection | With power-off data storage memory function |
| Torque wheel | R100mm(Ф200mm) ±0.5mm |
| Weight matching selection table | |
| Test content | EV Charging Station Cable Pull and Torque Tests |
| Torque apply | Meet 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m specifications,realized by superposition of weights |
| Pull apply | Meet 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights |
