Electric Vehicle Charging Connector Withdrawal Test Equipment IEC 62196-1
Complied Standards & Clauses
This test equipment conforms to IEC 62196-1:2022 clause 14.1.5, 14.1.6, fig13, fig14.
Equipment Overview

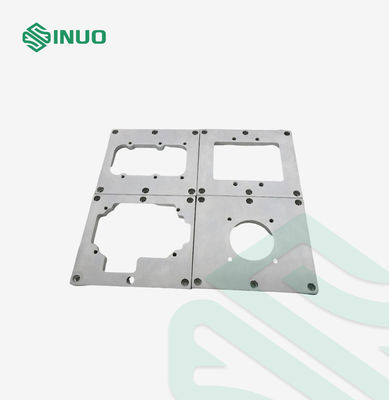

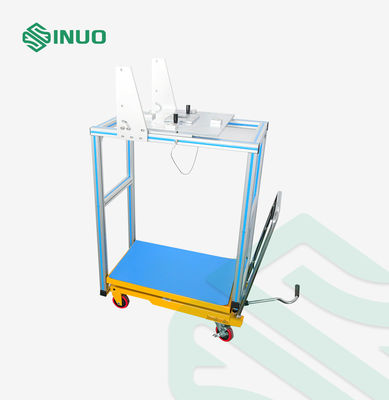

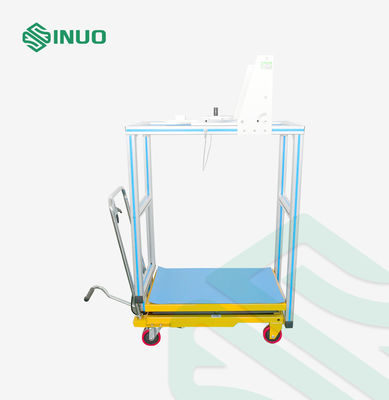

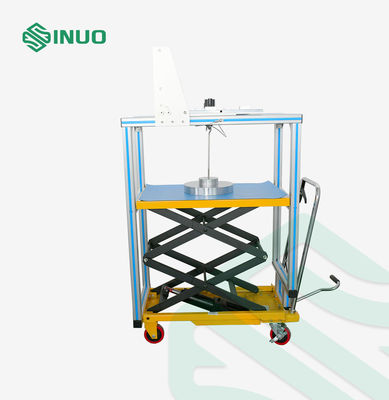

It is used to check the withdrawal force required when the test plug is withdrawn from the socket-outlet and latching device.
Technical Parameters
The test plug, according to the relevant standard sheets, shall have finely ground contacts of hardened steel, having a surface roughness not exceeding 0,8 µm over their active length and spaced at the nominal distances, with a tolerance of ±0,05 mm.
The dimension of the plug contacts or the distance between contact surfaces for other types of plug contacts shall be in accordance with the minimum dimension(s) given in the relevant standard sheets, with a tolerance of +0,010mm
The test plugs are not included in this test apparatus, please use those test plugs that client already ordered separately as following:
| No | Standard | Figure No.: | Name | QTY |
| 1 | IEC62196-2/Ed.3/CDV © IEC(E) | STANDARD SHEET 2-I sheet 1 | Test-plug:32A,250 V AC VEHICLE INLET | 1 |
| 2 | IEC62196-2/Ed.3/CDV © IEC(E) | STANDARD SHEET 2-Ilb sheet 1 | Test-plug:63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE | 1 |
| 3 | IEC62196-2/Ed.3/CDV © IEC(E) | STANDARD SHEET 2-Ild sheet 1 | Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE | 1 |
| 4 | IEC62196-2/Ed.3/CDV © IEC(E) | STANDARD SHEET 2-Ilf sheet 1 | Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE | 1 |
| 5 | IEC62196-2/Ed.3/CDV © IEC(E) | STANDARD SHEET 2-Illa sheet 1 | Test-Plug: 16 A, 250 V SINGLE-PHASE PLUG WITH 1 PILOT CONTACT | 1 |
| 6 | IEC62196-2/Ed.3/CDV © IEC(E) | STANDARD SHEET 2-Illa sheet 3 | Test-VEHICLE INLET : 16A, 250V SINGLE-PHASE VEHICLE INLET WITH 1 PILOT CONTACT | |
| 7 | IEC62196-2/Ed.3/CDV © IEC(E) | STANDARD SHEET 2-Illb sheet 1 | Test-Plug : 32 A, 250 V SINGLE-PHASE PLUG WITH 2 PILOT CONTACTS | 1 |
| 8 | IEC62196-2/Ed.3/CDV © IEC(E) | STANDARD SHEET 2-Illb sheet 3 | Test-VEHICLE INLET : 32A, 250V SINGLE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS | |
| 9 | IEC62196-2/Ed.3/CDV © IEC(E) | STANDARD SHEET 2-Illc sheet 1 | Test-Plug : 63 A, 480 V THREE-PHASE PLUG WITH 2 PILOT CONTACTS | 1 |
| 10 | IEC62196-2/Ed.3/CDV © IEC(E) | STANDARD SHEET 2-Illc sheet 3 | Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS | |
| 11 | IEC62196-3/Ed.2/CDV © IEC(E) | STANDARD SHEET 3-Ib Sheet 1 |
Test VEHICLE CONNECTOR | 1 |
| 12 | IEC62196-3/Ed.2/CDV © IEC(E) | STANDARD SHEETS CONFIGURATION BB VEHICLE COUPLER 250 A 900 V DC STANDARD SHEET 3-Iia Sheet 1 |
Test VEHICLE CONNECTOR | 1 |
| 13 | IEC62196-3/Ed.2/CDV © IEC(E) | STANDARD SHEET 3-IIIa Sheet 2 | Test VEHICLE INLET | 1 |
| 14 | IEC62196-3/Ed.2/CDV © IEC(E) | STANDARD SHEET 3-Iva VEHICLE INLETMODES 2, 3 AND 4 Sheet 2 | Test VEHICLE INLET | 1 |
| 15 | IEC62196-3/Ed.2/CDV © IEC(E) | STANDARD SHEET 3-Ivb VEHICLE INLET ALL MODES Sheet 1 | Test VEHICLE INLET | 1 |
