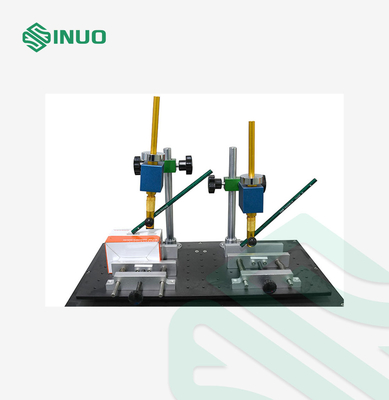

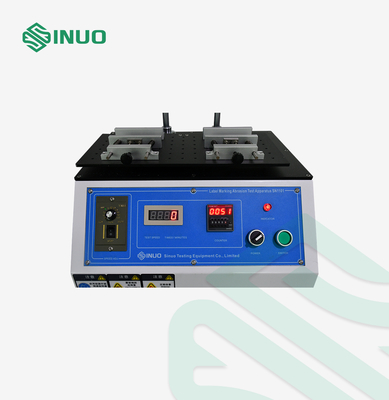

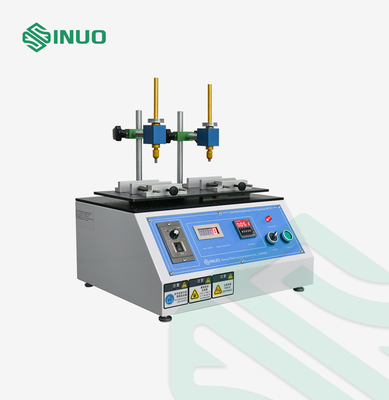

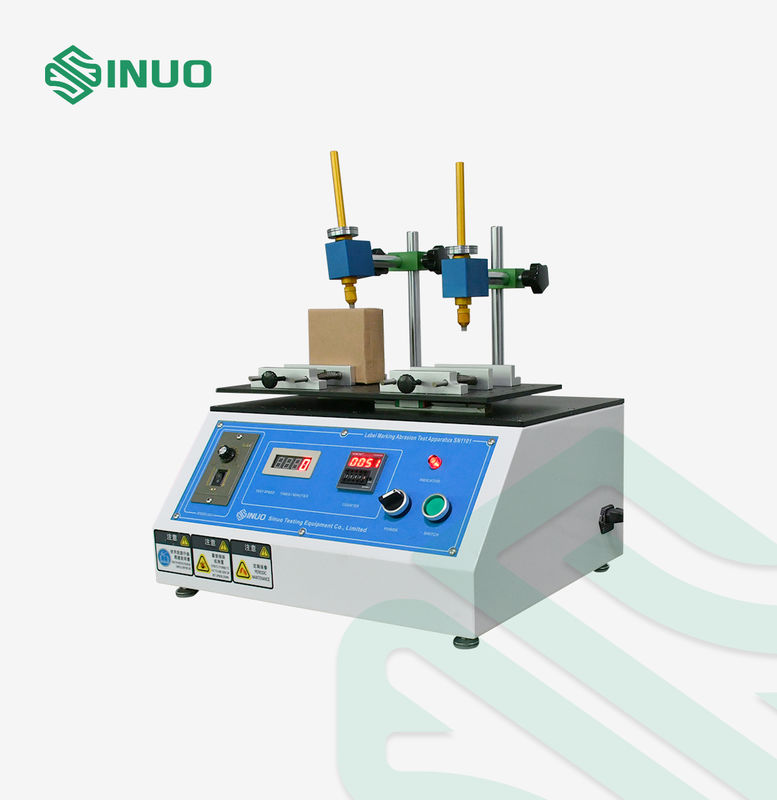

IEC 62196-1 Label Marking Abrasion Test Apparatus for EV Connector Markings
Complied Standards & Clauses
This label marking abrasion test apparatus conforms to IEC 62196-1:2022 clause 8.7, figure 8. It is used to verify the durability of marking.
Equipments Overview
The test is made by rubbing the marking for 15 s with a piece of cotton cloth soaked with water and again for 15 s with a piece of cotton cloth soaked with n-hexane 95 % (Chemical Abstracts Service Registry Number, CAS RN, 110-54-3).
The marking surface to be tested shall be dried after the test with water.
Rubbing shall commence immediately after soaking the piece of cotton, applying compression force of (5 ± 1) N at a rate of about one cycle per second (a cycle comprising forward and backward movement along the length of the marking). For markings longer than 20 mm, Rubbing can be limited to a part of the marking, over a path of at least 20 mm length.

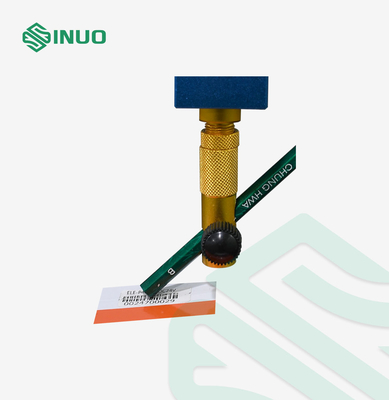

The compression force is applied by means of a test piston which is wrapped with cotton comprising cotton wool covered by a piece of cotton medical gauze.
The test piston shall have the dimensions specified in Figure 8 and shall be made of an elastic material which is inert against the test liquids and has a Shore-A hardness of 47 ± 5 (for example synthetic rubber).
Technical Parameters
| Test station | 2 stations |
| Electrical control method | Button control |
| Drive mode | Electric |
| Sample clamping method | Mechanical clamping, clamping point position is adjustable |
| Test Cycle | 0-9999 cycles, can be preset |
| Test speed | One cycle/s (a cycle comprising forward and backward movement along the length of the marking) |
| Force | 5±1N,applied by a weight |
| Test piston | NF C 61-314 figure 48,rayon, Shore-A hardness shore A 47± 5 |
