IEC 62916-3 EV Plug and Socket Temperature Rising Test System 6500A
Complied Standards & Clauses
This advanced test system is designed in compliance with IEC 62196-1 Ed.4 CDV 2020 (clause 12.3, clause 24, table 10, clause 34.2, 34.4, and 35.4), IEC 62916-2, IEC 62916-3, and other relevant standards.

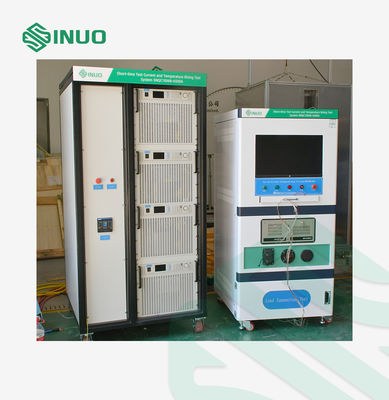

Product Overview
This system is primarily used to assess the temperature rise of electric vehicle plugs and sockets at rated current and to check surface heating of electrical accessories during load connection. It also supports short-duration, high-current withstand testing of ground contacts, ensuring reliable performance and safety verification.

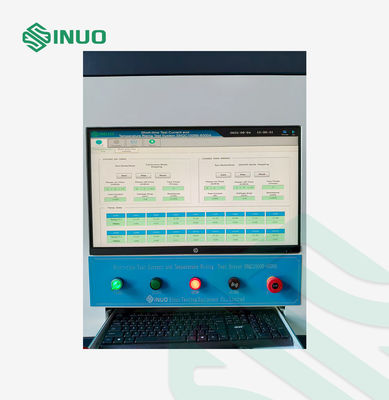

Equipped with proprietary software and computer control, the system enables fully automated test execution and data analysis. Its intuitive operation and precise performance provide an efficient solution for temperature rise assessment and compliance verification of electric vehicle charging interfaces and related components.
Technical Parameters
| Output Workstation | 1 DC output station |
| Maximum Output Voltage | DC less than DC 15V |
| Constant Adjustable Test Current Output | DC 200–6500A |
| Current Display Accuracy |
±(0.25% of reading + 0.25% of range), resolution 1A |
| Voltage Display Accuracy |
±(0.25% of reading + 0.25% of range), resolution 0.01V |
| Test Current Stability |
±(1% of set value + 0.5A), response time approximately 1s |
| Control Contact Power Supply |
Current range AC (0–2) A |
| Operating Modes |
Continuous mode, On/Off mode, Automatic temperature control mode |
| Continuous On/Off Mode |
1. Continuous Mode Test Time: 0.01–99.99 hours |
| Automatic Temperature Control Mode |
The system can set a stable temperature rise value and automatically find the appropriate current value. |
| Voltage Display Accuracy | ±(0.25% of reading + 0.25% of range), resolution 0.01V |
| Temperature Measurement Range |
0–260°C, Accuracy: ±0.3% of reading + 1°C; Resolution: 0.1°C |
| Temperature Measurement Points |
16 channels (including 1 point for measuring ambient temperature) |
| Thermocouple Types Supported |
The instrument supports J, K, T, E, S, N, B, R types of thermocouples. |
| Thermocouple Used for Measurement |
USA Ω Company K-type 30AWG fine wire thermocouples, length 2 meters, 20 pieces in total |
| Control Contact Power Supply | Current range AC (0–2) A |
| Operating Modes | Continuous mode, On/Off mode, Automatic temperature control mode |
| Test Current Stability |
±(1% of set value + 0.5A), response time approximately 1s |
| Current Display Accuracy | ±(0.25% of reading + 0.25% of range), resolution 1A |

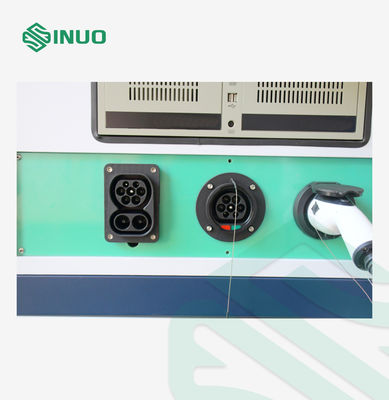

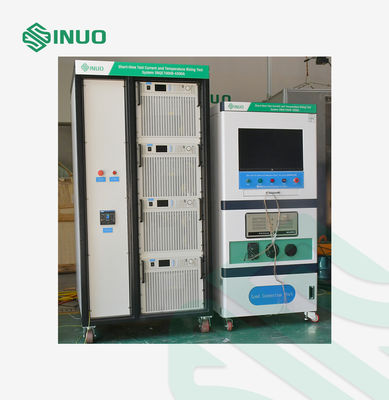

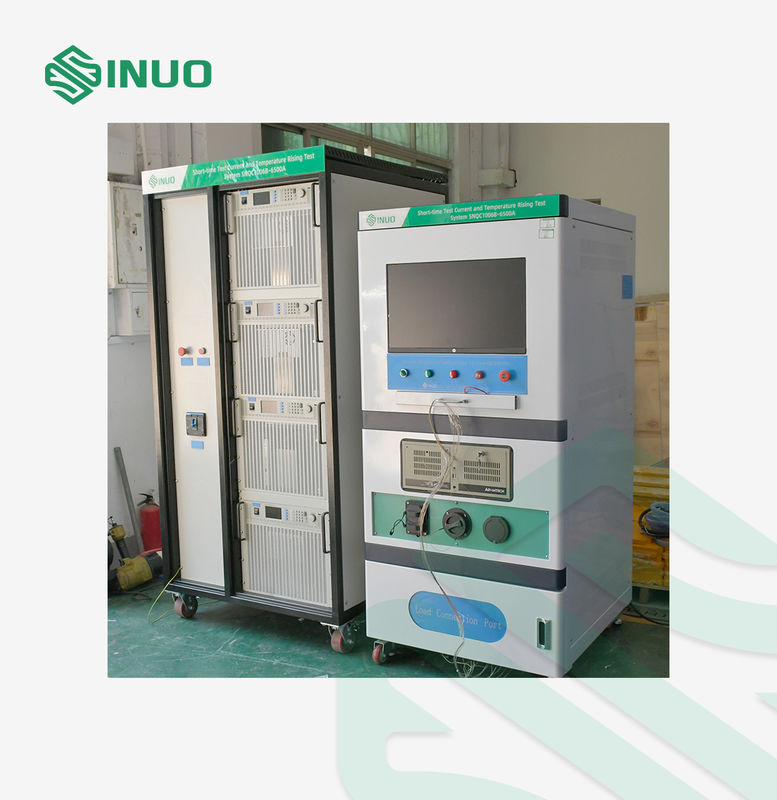

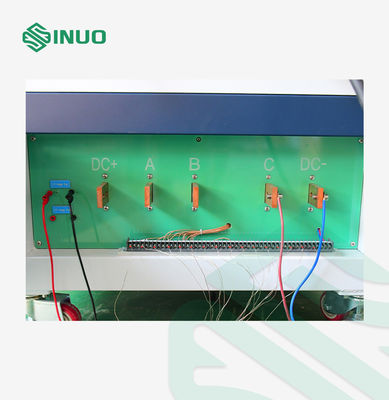

Details
