| Tên thương hiệu: | Sinuo |
| Số mẫu: | SNQC1007 |
| MOQ: | 1 |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | 10 bộ mỗi tháng |
Electric Vehicle Connector Cable Anchorage Pull Force and Torque Test Equipment
Complied Standards & Clauses
It is designed and manufactured according to IEC62196-1: 2022 clause 25.3 Figure 17 and table 11, IEC60309-1: 2012 clause 23.3, etc..
Product Overview

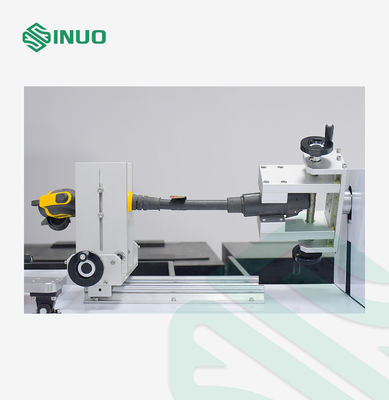

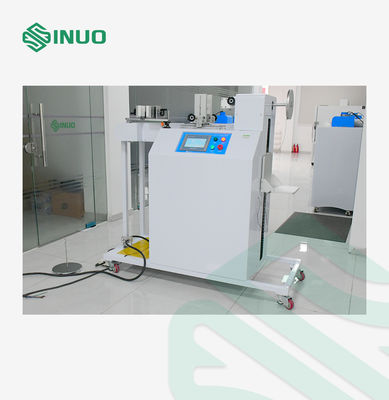

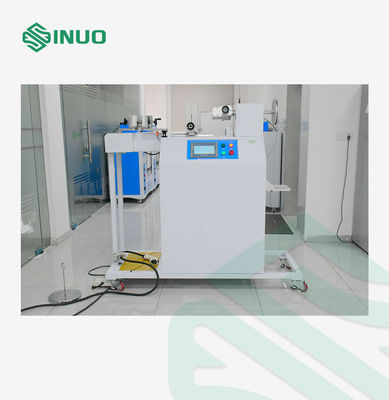

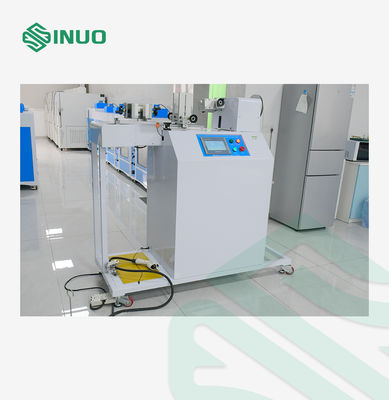

This pull force and torque testing apparatus is designed for evaluating vehicle plugs, socket-outlets, and connectors to ensure they can endure the required mechanical stresses of pulling force and torsional load.
The equipment is developed and manufactured in full compliance with IEC 62196-1:2022 clause 25.3, Figure 17 and Table 11, as well as IEC 60309-1:2012 clause 23.3, among other relevant standards.
The pulling function is performed by a single-phase variable-speed motor that operates an eccentric mechanism, with adjustable motor speed to guarantee precise timing for each applied pull force. Torque is generated by an air cylinder that releases a calibrated torque weight, ensuring consistent and accurate torque measurement.
Technical Parameters

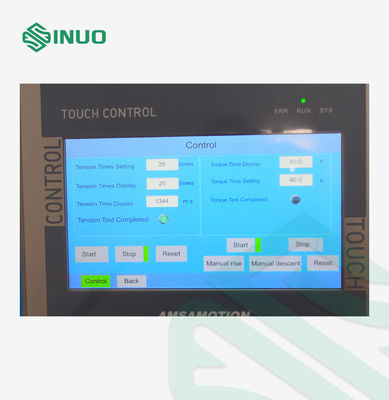

| Operation Method | Button operation |
| Drive Mode | Motor and cylinder |
| Power Supply | Single phase AC220V±10%, 50/60Hz, 10A |
| Equipment Dimensions & Weight |
L 1560mm*W 600mm*H 1530mm, approx. 220KG |
| Fixture |
One set of universal fixtures |
| Torque Arm | Ф200mm |
| Torque Applied Time | 0.01S ~ 99 hours 59 minutes 59 seconds, default 1 min |
| Pull Frequency | 1 cycle/s |
| Pull Cycles | 1-999999 cycles, can be preset, default 100 cycles |
| Pull Force Weights |
40N*1, 50N*1, 60N*1, 100N*2,250N*1 Can achieve 160N, 200N, 240N, 250N,500N,600N pull force |
| Torque Weights |
6N*1, 7N*1, 12N*1, 15N*1, 23N*1, 110N*1 Can achieve 0.6N.m, 0.7N.m, 1.2N.m, 1.5N.m, 2.3N.m, 11N.m torque |
Details
