EV Charging Connector Withdrawal Force Test Apparatus IEC 62196-1
Complied Standards & Clauses
This withdrawal force test apparatus is required by IEC 62196-1:2022 clause 16.16.
Product Overview

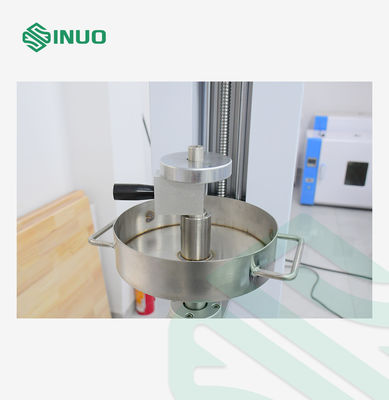

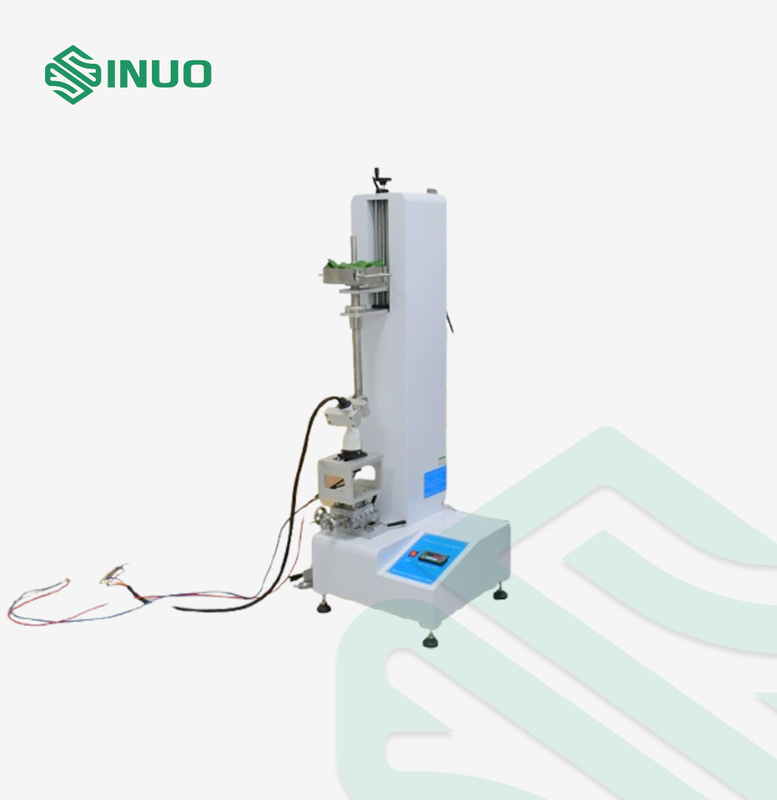

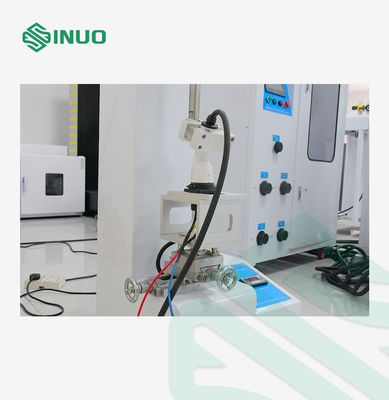

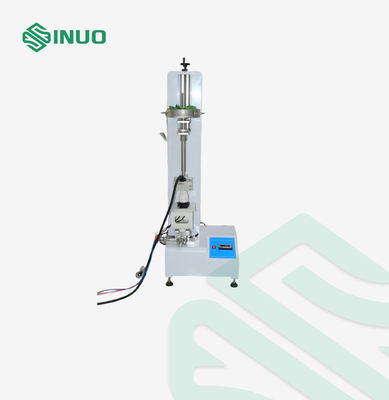

This EV Charging Gun Withdrawal Force Test Apparatus is designed in compliance with IEC 62196-1:2022 clause 16.16. It accurately measures the maximum force required to insert the charging gun into the socket, ensuring the charging interface is easy to use and meets safety standards.
With a precise impact testing mechanism, the device simulates the standard insertion process, helping manufacturers verify that every charging gun and socket combination provides a smooth and reliable connection. Ideal for EVSE manufacturers, quality control labs, and testing facilities.
Technical Parameters
| Test station | Single station |
| Additional weight drop height | 5cm |
| Charging gun’s clamp | Clamping handle, adjustable direction, so that the gun head is vertically downward |
| Weight configuration |
Main weight of AC charging gun: 9.2kg Main weight of DC charging gun: 13.2kg Additional weight: 0.8kg Note: The weight of the main weight includes the weight of the clamp, guide rod, steel ball basin and charging gun sample. The weight of the main weight without the sample is about 4kg. An additional 10kg steel ball is equipped for fine-tuning the weight to make the entire main weight weight conform to AC or DC. Gun insertion force requirements.
|
| Force monitoring | Pull pressure value sensor and instrument display |
| Control method | Manual, the instrument displays force value data in real time |
| Insert initial positioning | Precision slide table and long linear guide bearing positioning |
| Lifting method | Manual |
| Additional weight drop method | Manual |
