| Tên thương hiệu: | Sinuo |
| Số mẫu: | SNB02D-5KN |
| MOQ: | 1 |
| giá bán: | Customized |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | 1 bộ/tháng |

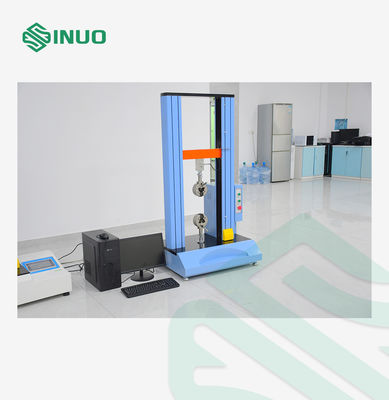

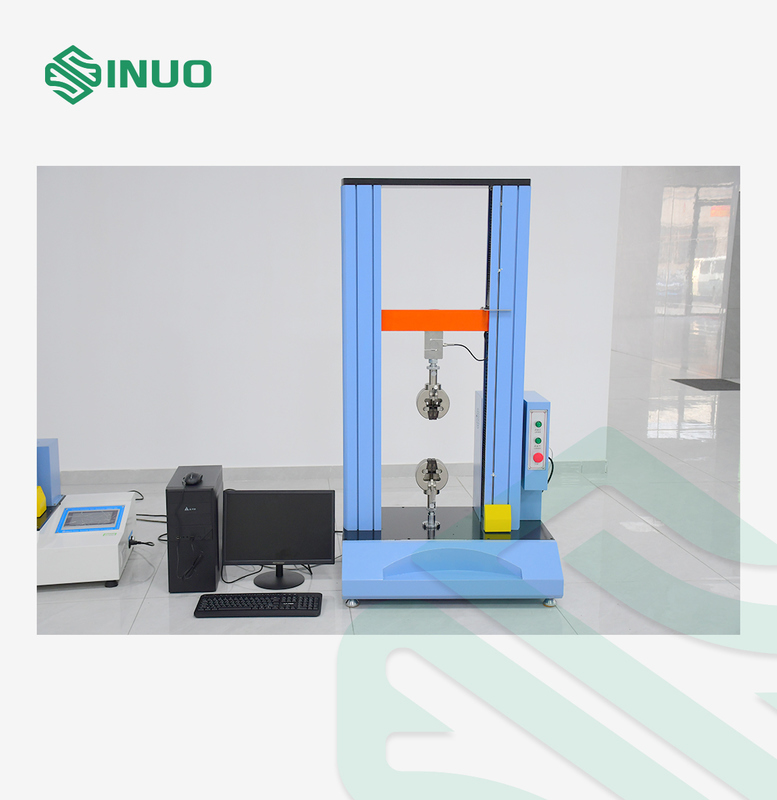

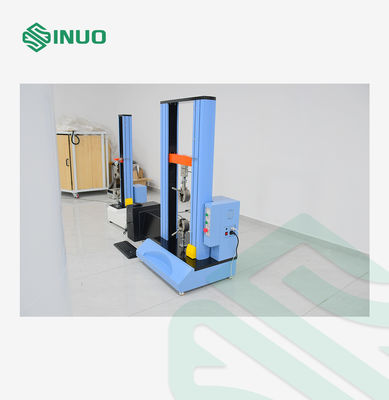

Tensile Elongation Compression Test Apparatus Universal Tensile Tester for IEC 62368-1
Equipment Overview
Controlled by a computer for intelligent operation, this machine is widely used to evaluate the mechanical performance of various materials such as rubber, plastic, wire and cable, textile, waterproof materials, non-woven fabrics, and even metal wires, foils, plates, and rods.
With customized fixtures, it supports a wide range of tensile, compression, peeling, shearing, tearing, and bending tests. The system provides accurate data acquisition, graphical output comparison, and easy operation, ensuring reliable and repeatable results.
Featuring a modular design with complete and flexible accessories, this tester offers high precision, strong adaptability, and user-friendly performance, making it an ideal choice for laboratories, R&D centers, and quality control departments.

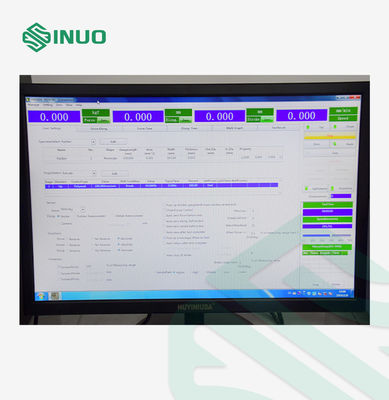

Control software introduction
Software operating system language: English.
Force unit: N, KN, Kgf, Lbf
Length unit: mm/cm/inch, freely convertible
Control method: Computer software setting speed, setting load break (rupture), running time and other control methods
Curve types: load-displacement, load-time, displacement-time. Stress-strain, strain-time, stress-time.
The vertical and horizontal coordinates of the curve can be set arbitrarily.
Working conditions of the testing machine
1. Within the range of room temperature 10℃-35℃, the relative humidity is not more than 80%;
2. Install correctly on a solid foundation or workbench;
3. In a vibration-free environment, leave a space of not less than 1m around;
4. Please note that here is no corrosive medium around;
5. The fluctuation range of the power supply voltage should not exceed 10% of the rated voltage.
Technical Parameters
|
No. |
Item |
Specification |
|---|---|---|
| 1 | Test Force Range | 0 – 500 kg |
| 2 | Unit Switching | Kg, N, Lb (freely switchable) |
| 3 | Load Resolution | 1/250,000 |
| 4 | Loading Accuracy | ±0.5% |
| 5 | Displacement Units | mm, cm, in |
| 6 | Force Measurement Display Accuracy | 0.001 kg |
| 7 | Displacement Measurement Display Accuracy | 0.001 mm |
| 8 | Deformation Device | Large deformation device for elongation test |
| 9 | Deformation Measurement Range | 0.2% – 100% FS |
| 10 | Test Stroke | 800 mm (including fixture) |
| 11 | Effective Test Width | 400 mm |
| 12 | Speed Range | 0.05 – 500 mm/min, stepless speed regulation |
| 13 | Transmission System | Servo motor, Taiwan ZPT ball screw, computer software TM2101 |
| 14 | Safety Devices | Overload emergency stop, upper/lower stroke limit, automatic break stop function |

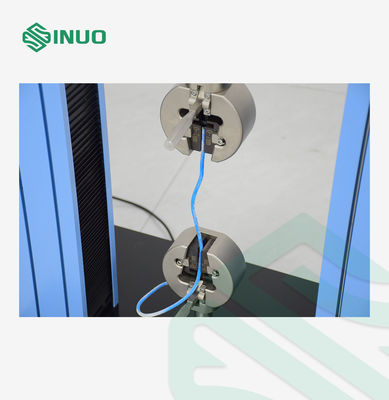

| 15 | Fixtures | One set of tension fixture and one set of compression fixture |
| 16 | Power Supply | 220V / 50Hz |
| 17 | Power | 1.0 kW |
| 18 | Machine Weight | Approx. 150 kg |
