| Tên thương hiệu: | Sinuo |
| Số mẫu: | SN552-1092L |
| MOQ: | 1 |
| giá bán: | Customized |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 10 bộ/tháng |

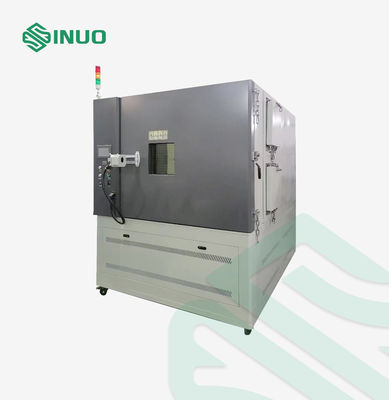

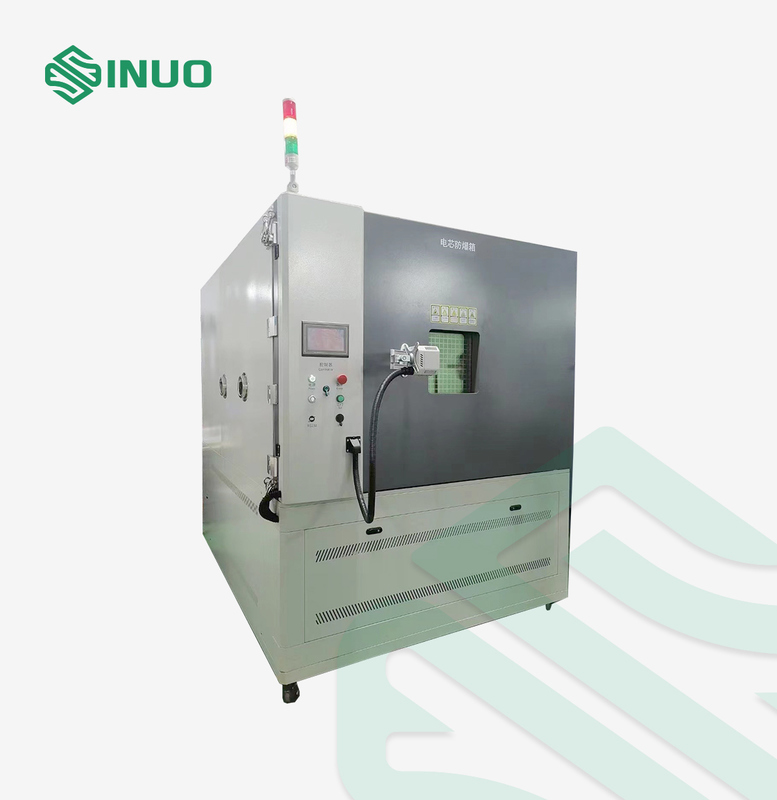

Battery Safety Test Equipment Explosion-Proof Environmental Test Chamber
Complied Standards & Clauses
Conforms to IEC60068-2-2:2007, IEC60068-2-1:2007, etc.
Equipment Overview
The Battery Explosion-Proof Test Chamber is specially designed to evaluate the safety performance of lithium batteries under extreme conditions such as overcharging, short-circuit, and thermal runaway. Built with a reinforced explosion-proof structure, pressure relief device, and high-temperature resistant materials, this chamber ensures maximum operator safety during destructive battery tests.
Technical Parameters
| Control & Operation | PLC and touch screen intelligent control system | |
|
Chamber Size
|

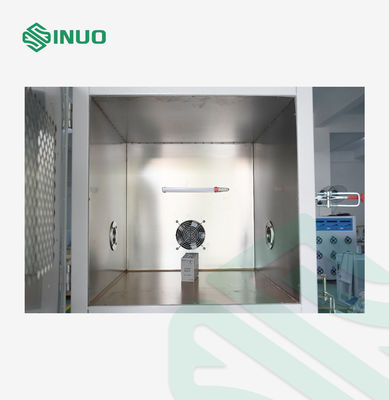

Inner Size | External Size |
| W1300*700H*D1200mm | W1875*1980H*1723 mm | |
| Temperature Range | -70 °C ~+150°C | |
| Temperature fluctuation | ±0.5℃ | |
| Humidity fluctuation | ≤2.5% | |
| Temperature uniformity | ≤±2.0℃ | |
| Temperature deviation | ≤±1.0℃ | |
| Heating Rate | -40℃→+72℃ No-load Linearity Within 30℃/min | |
| Cooling Rate | +72℃→-40℃ No-load Linearity Within 30℃/min | |
| Load condition | None | |
| Working noise |
A sound level≤70dB(A) (Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.) |
|
| Temperature and Humidity Range Scheme | |
|
| Cooling system | |
| Operation mode | Air-cooled mechanical compression cascade refrigeration system |
| Heating and cooling devices |
1. Emerson low-temperature and low-noise scroll compressor (air-cooled heat dissipation method). 2. Cooling method: air cooling |
| Heat and cold exchange device | Single-stage refrigeration system, Emerson low-temperature and low-noise scroll compressor imported from the United States. Adopting ultra-high-efficiency SWEP cold coal heat and cold exchange design [made in Sweden (sus#316)], it is more efficient than the traditional internal spiral type. |
| Heating load adjustment |
1. The automatic adjustment of the cold coal flow rate device is adopted to effectively take away the heating load of the product to be tested, which is synchronized with German/Japanese technology. 2. Compared with traditional designs, the control stability and reproducibility are higher, and it achieves ultra-high performance in terms of power saving and energy saving. |
| Refrigeration compressor |
Hitachi or Emerson low temperature and low noise scroll compressor
|
| High efficiency components |
1. The condenser and evaporator adopt AC&R double spoiler type aluminum fin device. 2. The throttling devices adopt imported famous brand refrigeration accessories. |
| Expansion system | Capacity controlled refrigeration system |
| Evaporative condenser | All copper tube heat exchanger |
| Refrigerator control method |
1. The controller of the control system automatically adjusts the operating conditions of the refrigeration compressor according to the test conditions. The output cooling capacity can be controlled to achieve the principle of saving electricity and water. The working condition is more stable. 2. Evaporation pressure regulating valve. 3. Compressor return air cooling circuit |
| Refrigerants | Honeywell R404a (ozone depletion index is 0) |
