| Tên thương hiệu: | Sinuo |
| Số mẫu: | SN4411 |
| MOQ: | 1 |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 10 bộ mỗi tháng |

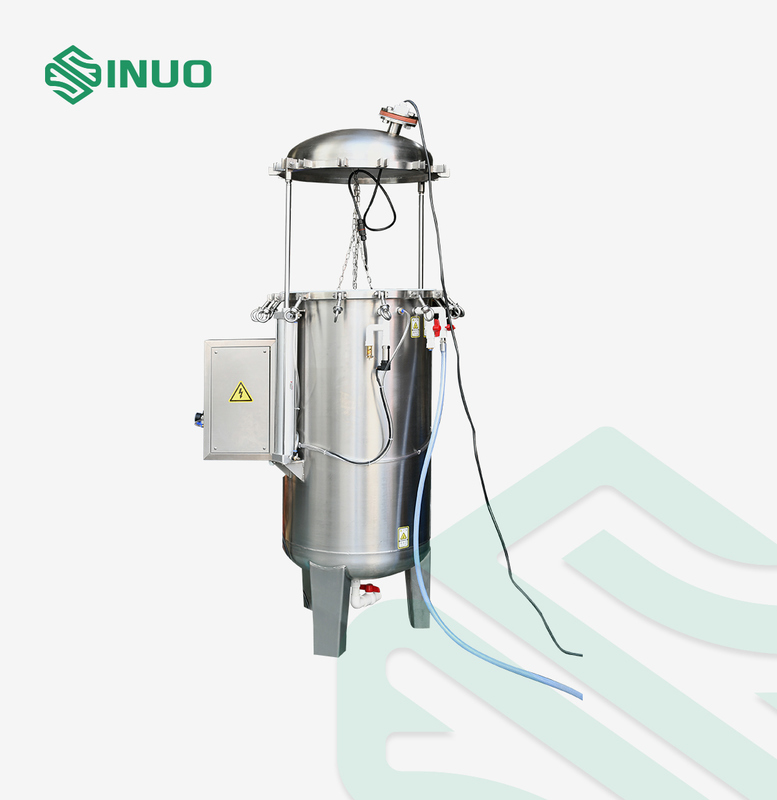

High Pressure Water Tank IPX8 Immersion Test Equipment IEC 60529
Complied Standards & Clauses
Conforms to IEC 60529:2013 IPX8 etc.
Product Overview
The IPX8 Immersion Test Equipment is designed to evaluate the waterproof protection performance of enclosures for electronic and electrical products, automotive components, motorcycle parts, household appliances, seals, and lighting devices under continuous water immersion conditions, in full compliance with IEC 60529:2013.
Built with a high-quality stainless steel water tank, this system ensures long-lasting durability and resistance to corrosion. The equipment is PLC-controlled and features an intuitive touch screen interface, allowing users to easily set and monitor test parameters. Water filling, pressure control, and drainage are all performed automatically, ensuring stable, precise, and efficient testing.
This IPX8 immersion tester provides a reliable and user-friendly solution for verifying the waterproof reliability of products used in harsh environments.
Technical Parameters
| Item | Specifications | |
| Equipment power supply | 220V single phase for Korean outlet, manufactured at 60Hz (16A or less) | |
| Drive | External air compressor drive, 0.5~0.7MPa | |
| IP code test range | IPX8 test | |
| Sample size |
W170mm*D90mm*H30mm(each 20V/0.1A / 500V 2mA) |
|
| IPX8 pressure tank | Chamber internal diameter | 350mm diameter |
| Chamber internal height | >400mm | |
| Maximum pressing force | 4.0 bar | |
| Tank material | SUS304 stainless steel | |
| Pressurization method | Air pressurization mode must be used to ensure that the space above the terminal block remains dry and is not submerged in water. Have a sample power terminal. Pressurization setting and actual value displayed. | |
| Test Method |
-After assembling the connector and loading it into the equipment, pressurize the inside of the equipment with about 25 lines drawn out to the outside. - The interior of the equipment is filled with sugar water (68% sugar, 32% water, User-provided) |
|
| Pressure sensor accuracy | 0.5 grade | |
| Limit pressure of safety valve protection | 0.55 MPa | |
| Pressure protection |
a. mechanical protection: spring-type safety relief valve b. program control: the pressure exceeds the upper limit value, the pump will stop working and immediately release the pressure |
|
| Cover opening method | Can be lifted by the screw rod and moved laterally, and can be fully opened for convenient sample placement | |
| Control | PLC control | |
| Test time | Set according to the test standard (range 1-9999 seconds), the unit is: second | |
| Others |
- Manufactured by separating pressure gauges for calibration - Wire withdrawal part is made and applied as a separate attachment module for easy A/S (see photo below) è 16 lines
|
|
Details
