| Tên thương hiệu: | Sinuo |
| Số mẫu: | SNQC1017A |
| MOQ: | 1 |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 10 bộ mỗi tháng |

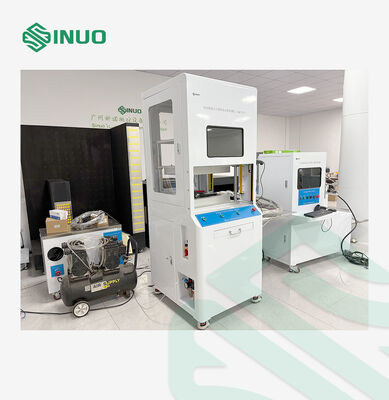

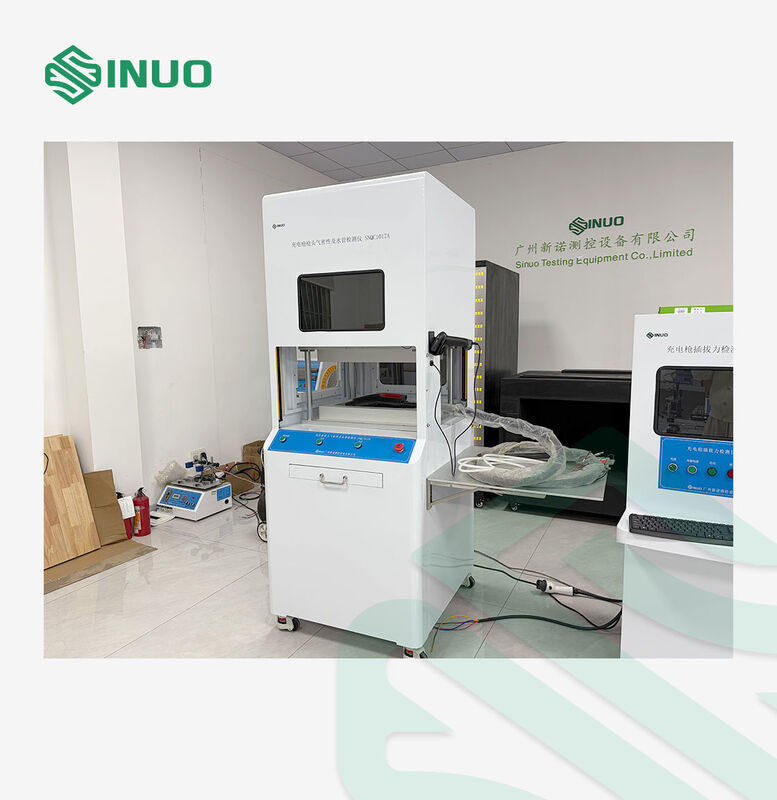

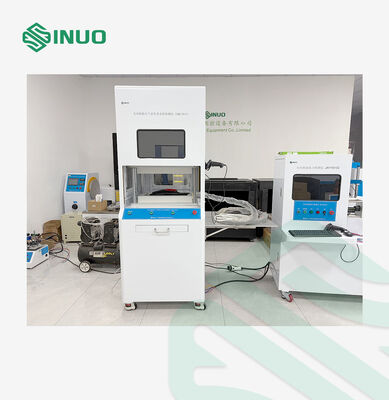

Air pressure test equipment for EV Charging Connector Air Tightness Tester
Product Overview
The Electric Vehicle Charging Connector & Water Pipe Air Tightness Tester is a high-precision leak detection system engineered for manufacturers who demand reliable quality control of EV charging gun components. Designed according to IPX7 pressure-drop testing standards, this advanced tester ensures that every connector or water-pipe assembly meets strict airtightness requirements before entering the production line.
Equipped with a stable pressure source, micro-leakage monitoring, automatic judgment, and intelligent data recording, the system delivers fast, accurate, and repeatable results. It is an ideal solution for EV charging gun assembly plants, EVSE component suppliers, laboratories, and R&D centers seeking to improve product consistency, reduce quality risks, and enhance testing efficiency.
Technical Parameters
|
Technical Item |
Specification |
|---|---|
| Display Resolution | 0–4 decimal places adjustable |
| Pressure Resistance | 1 MPa |
| Measurement Range | 0 to ±2000 Pa |
| Display Resolution | 0–4 decimal places adjustable |
| Accuracy | ±0.1% FS |
| Accuracy | ±0.1% FS |
| Overpressure Resistance | 3× full-scale pressure |
| Leakage Units | Pa, Pa/s, mL/s, mL/min, L/min, Pa·m³/s |
| Test Pressure Units | kPa, kg/cm², PSI, mbar, bar, Torr, mmH₂O, mmHg |
| Test Cycle Setting | 0–999s |
| Parameter Channels | 64 channels (1–64) |
| Power Supply | AC 220V ±10%, 50 Hz |
| CPU | 32-bit processor |
| Humidity | < 80% RH, non-condensing |
| Required Air Source | Clean, dry air ≥ 600 kPa |
| Storage Temperature | –20°C to 70°C |
| Operating Temperature | –5°C to 40°C |
Details
