| Tên thương hiệu: | Sinuo |
| Số mẫu: | SNQC1007B |
| MOQ: | 1 |
| giá bán: | Customized |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 20 bộ/tháng |

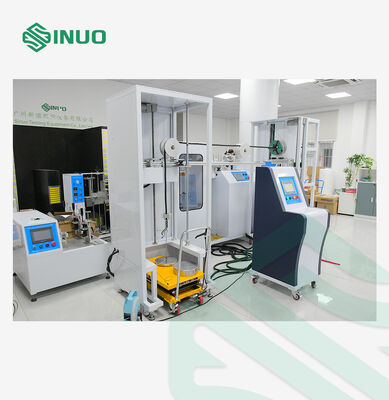

IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment
Complied Standards & Clauses
It is designed and manufactured according to IEC 61851-23:2023 clause 11.6.102 and Figure 110, Figure 111 and Table 114.
Product overview
The Cable Anchorage Pull Force and Torque Test Apparatus (Model SNQC1007B) is a high-precision testing solution engineered for manufacturers and laboratories seeking reliable EVSE compliance. Developed strictly according to IEC 61851-23:2023 clause 11.6.102, this system evaluates whether EV AC/DC charging station cables and anchorage structures can withstand specified tensile forces and torque without exceeding displacement limits.
Equipped with PLC intelligent control, motor-driven force application, and precision weight loading, the SNQC1007B delivers stable, repeatable, and highly accurate test results. Its customizable parameters, durable mechanical structure, and intuitive touch-screen interface make operation effortless even for first-time users.
By realistically simulating real-world pull and twist conditions, this apparatus ensures that charging stations meet stringent international safety standards—helping manufacturers guarantee safer, more reliable, and fully compliant EV charging infrastructure.
Technical Parameter
| Test content | EV Charging Station Cable Pull and Torque Tests |
| Equipment structure schematic diagram | |
| Control operation mode | PLC automatic control, touch screen operation |
| Torque apply | Meet 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m specifications,realized by superposition of weights |
| Drive mode | Electric |
| Pull apply | Meet 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights |
| Pull cycles | 1-999999 cycles, can be preset, default is 100±1 cycles |

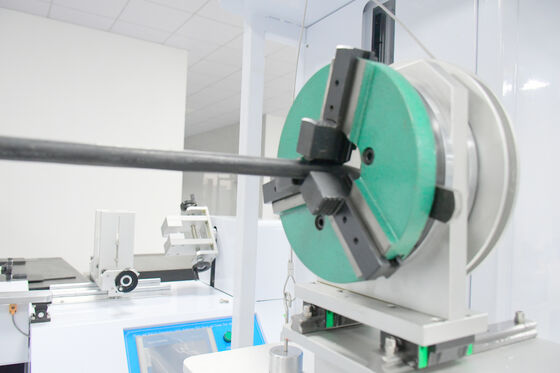

| Torque wheel | R100mm(Ф200mm) ±0.5mm |
| Tensile frequency | 1 time/s, the actual pull time is detected by electrical signal |
| Fixture | Universal clamp, one set |
| Torque application time | 0-99H59M59S,can be preset |
| Power failure protection | With power-off data storage memory function |
| Additional configuration | The equipment features an adjustable fixture height ranging from 500 to 1200 mm (i.e., the cable outlet position), allowing it to meet the testing requirements of charging stations with different cable outlet positions. |
| Weight matching selection table | |

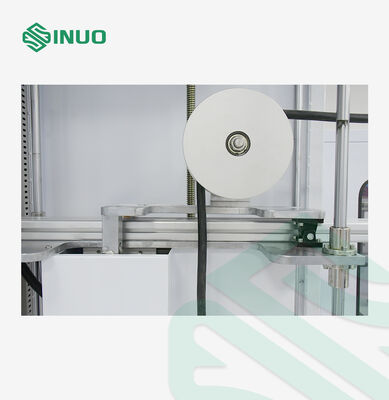

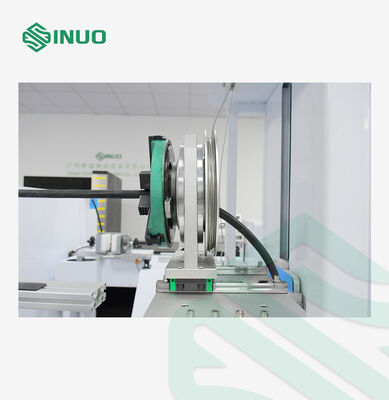

Details
