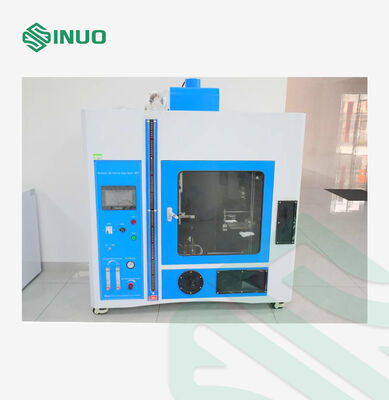

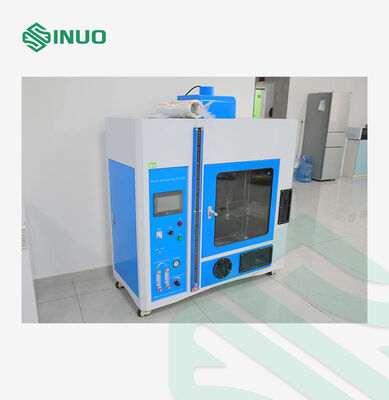

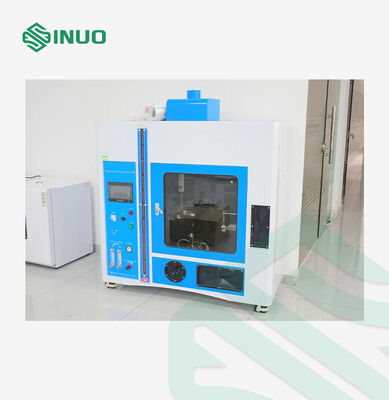

UL94 Vertical and Horizontal Burning Test Device Flame Test Machine
Complied Standards & Clauses
Conforms to UL94, IEC60695-11-2, IEC60695-11-3, IEC60695-11-4, IEC60695-11-10, IEC60695-11-20.
Equipment Overview
Ensure the safety and compliance of your products with the Horizontal and Vertical Flammability Tester, designed to evaluate the ignitability and flame propagation of plastic and non-metallic materials in electrical and electronic devices. Compliant with major international standards including UL94, IEC60695-11-2/3/4/10/20, IEC60065, this tester helps manufacturers accurately assess fire hazards at the earliest stages of ignition.
Equipped with an integrated ignition system featuring a 0.1-second flame delay, high-precision digital timers, and a multi-functional flame measuring gauge, the tester delivers reliable, repeatable, and precise results. A matte black background and large observation window ensure optimal visibility, while the stainless steel enclosure guarantees durability and corrosion resistance.
Compact yet robust, this flammability tester is ideal for household appliances, IT equipment, audio/video devices, and other electronic products, giving manufacturers confidence in their material choices and helping ensure compliance with global safety standards.
Technical Parameters
| Working voltage | 220V/50Hz |
| Power/grade | 50W and 500W double power switching |
| Control operation mode | PLC control, 7 inch color touch screen operation, with infrared remote controller |
| Blast burner standard |
IEC60695-11-3/IEC60695-11-4/10, UL94, etc. inner diameter:Φ9.5±0.3mm,length:100mm,made of brass |
| Gas pressure | 0.1MPa |
| Gas flow | 50W:105±5ml/min or 18±1mm;500W:965±30ml/min or 117±3 mm,flow meter adjustment |
| U type pressure gauge back pressure water column height |
50W:10mm; 500W:125±5 mm |
| Test angle |
50W: 0°,45°; 500W: 20° |
| Burning time | 0-9999X0.1S Can be preset |
| Burning times | 0-9999 times,Can be preset |
| Residual flame/Residual glow | 0-9999X0.1S Can be displayed |
| Lighting | Equip with lighting in the test chamber, with control |
| Test chamber and dimension | > 0.75 cube, black inwall, with exhaust fan, dimension:1100*550*1200mm, 140kg |

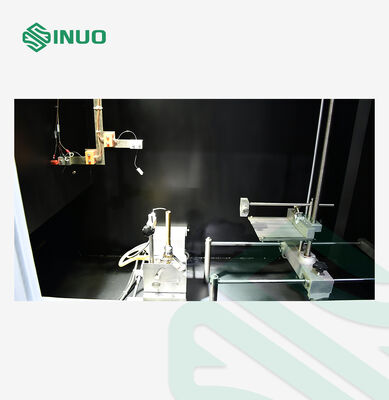

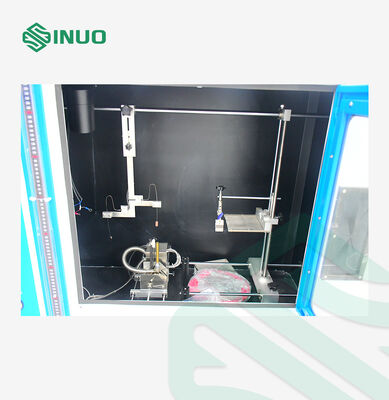

Details
