| Tên thương hiệu: | Sinuo |
| Số mẫu: | SN4428-JISB1000L |
| MOQ: | 1 |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 10 bộ mỗi tháng |
The equipment complies with the test requirements of R1, R2, S1, and S2 as specified in JIS D0203.
Application Background:
Water in the natural environment (such as rainwater, seawater, rivers, etc.) causes significant damage to products and materials, resulting in immeasurable economic losses every year. The damage mainly includes corrosion, fading, deformation, reduction in strength, swelling, and mold growth. In particular, electrical products exposed to rainwater may easily suffer short circuits, which can even lead to fires. Therefore, conducting enclosure water protection tests for specific products or materials is an essential and critical procedure.
Typical Applications:
Outdoor lighting, household appliances, automotive components, and other electrical and electronic products.
Equipment Function:

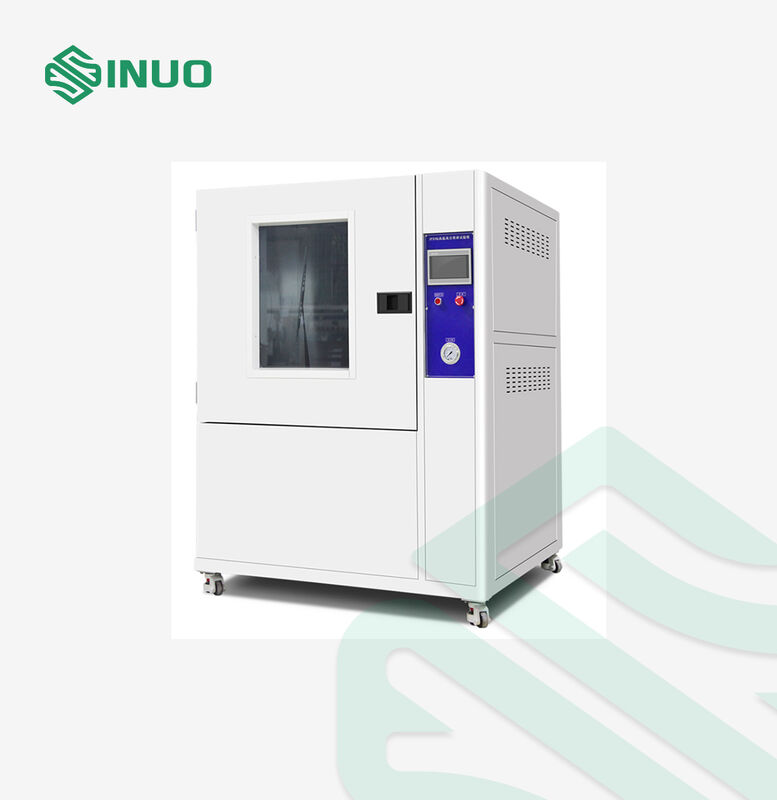

This equipment is mainly used to test the physical and other related performance of products such as electrical and electronic products, lamps, electrical cabinets, electrical components, automobiles, motorcycles, and their parts under simulated rainfall conditions. After testing, the results are evaluated to determine whether the product performance meets the required standards, providing a basis for product design, improvement, verification, and factory inspection.
|
Technical Specifications |
Basic parameters |
|
|
Inner box dimensions |
Length 1000 * Depth 1000 * Height 1000mm |
|
|
External dimensions |
Approximately Length 1450 * Depth 1220 * Height 1920mm |
|
|
Turntable diameter |
￠400mm |
|
|
Maximum load capacity of the turntable |
50KG |
|
|
Turntable lifting height |
500-800 mm |
|
|
Turntable speed |
1 -23 r/min (precisely adjustable) |
|
|
Turntable rotation method |
Always rotating forward / Alternating between forward and reverse |
|
|
Test time |
0-999 min |
|
|
Total equipment weight |
Approximately 250kg |
|
|
Japanese Standard R1/R2 - Technical Specifications |
||
|

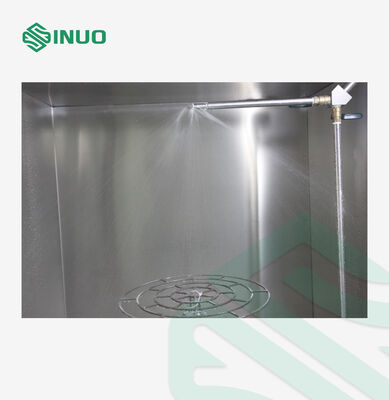

Sprinkler test spiral pipe |
Customized strictly according to the requirements of JIS D0203 water spray test drawings. |
|
|
Water pressure of the spray |
R1: 0.01MPa, R2: 0.03MPa, pressure can be set. |
|
|
water jet hole |
As shown in the diagram, the spray nozzles should be machined to meet the JIS D0203 water spray test requirements. |
|
|
Number of spray holes |
2 pcs |
|
|
The sprinkler pipe rotates around its axis |
Adjustable from 1 to 23 r/min |
|
|
Japanese Standard S1/S2 - Technical Specifications |
||
|

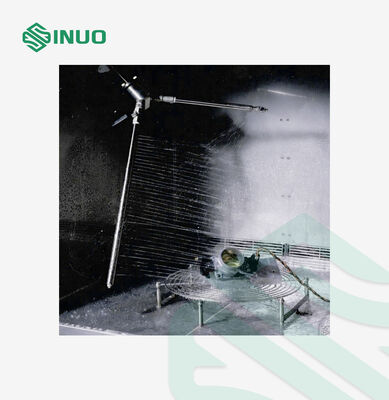

Spray test swivel tube |
Customized strictly according to the requirements of JIS D0203 water spray test drawings. |
|
|
Water pressure of the spray |
S1: 0.1MPa, S2: 0.3MPa, pressure can be set. |
|
|
Water spray hole diameter |
Φ1.2mm |
|
|
Number of spray holes |
40 pcs |
|
|
The water spray pipe rotates around its axis |
Adjustable from 1 to 23 r/min |
|
|
Electrical parameters |
||
|
Equipment power supply |
380V；50Hz |
|
|
Equipment power |
2.0KW |
|
|
Safety protection function |
Leakage protection, water shortage protection, short circuit protection |
|
