| Tên thương hiệu: | Sinuo |
| Số mẫu: | SN4418 |
| MOQ: | 1 |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 10 bộ mỗi tháng |

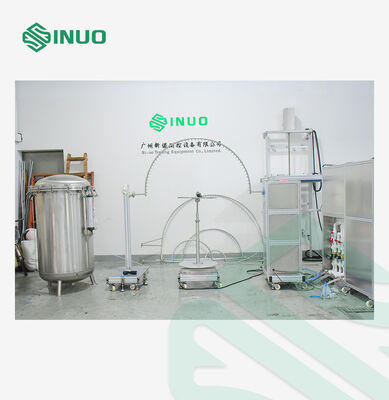

The IPX1–IPX8 Comprehensive Waterproof Test System is designed to evaluate the waterproof performance and ingress protection capability of electrical and electronic products. The system can simulate multiple water exposure conditions including dripping, spraying, water jetting, and immersion tests to verify whether products meet the required Ingress Protection (IP) ratings.
This equipment integrates testing functions for IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8, allowing laboratories and manufacturers to conduct complete waterproof testing with a single system. It is widely used for testing household appliances, automotive components, electronic devices, lighting products, outdoor equipment, and industrial electrical enclosures.
The system features a modular design, precise water flow control, adjustable test parameters, and a durable stainless-steel structure, ensuring reliable testing performance, long service life, and full compliance with international testing standards.
With its advanced design and user-friendly operation, this equipment provides an efficient and standardized solution for product waterproof performance evaluation.
|
Test Level |
Parameter |
Specification |
|---|---|---|
|
IPX1 – IPX2 Drip Test |
Drip Area |
1000 mm * 1000 mm |
|
Drip Hole Diameter |
Φ0.4 mm |
|
|
Drip Rate |
1 mm/min (IPX1), 3 mm/min (IPX2) |
|
|

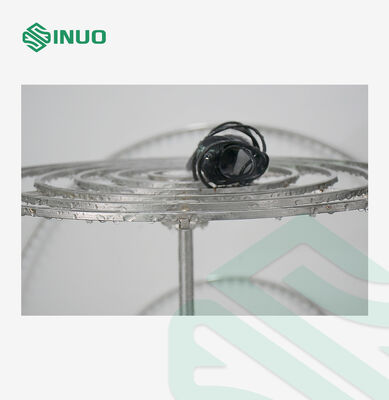

Turntable Diameter |
Φ600 mm |
|
|
Turntable Speed |
1–5 rpm |
|
|
Turntable Tilt Angle |
0°–15° adjustable |
|
|

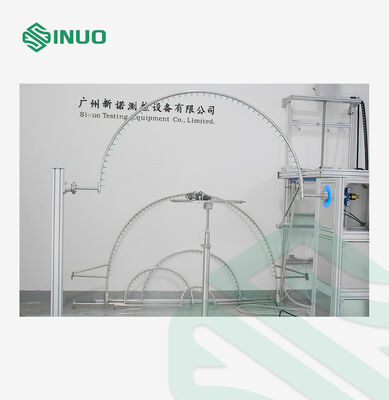

IPX3 – IPX4 Oscillating Tube Test |
Oscillating Tube Radius |
R400 mm / R600 mm / R800 mm |
|
Oscillation Angle |
±45°, ±60°, ±90°, ±180° adjustable |
|
|
Swing Speed |
Approx. 60°/s |
|
|
Pipe Diameter |
Φ15 mm |
|
|
Nozzle Spacing |
50 mm |
|
|
Nozzle Diameter |
Φ0.4 mm |
|
|
Water Pressure |
50–150 kPa adjustable |
|
|
Flow Rate per Nozzle |
0.1 L ±5% / min |
|
|
IPX5 Water Jet Test |
Nozzle Diameter |
Φ6.3 mm |
|
Water Flow Rate |
12.5 L ±5% / min |
|
|
Water Jet Core |
Approx. Ø40 mm at 2.5 m distance |
|
|
Test Distance |
2.5 – 3 m |
|
|
Test Duration |
1 min per m² of enclosure surface (minimum 3 min) |
|
|
IPX6 Powerful Water Jet Test |
Nozzle Diameter |
Φ12.5 mm |
|
Water Flow Rate |
100 L ±5% / min |
|
|
Water Pressure |
Approx. 100 kPa |
|
|
Water Jet Core |
Approx. Ø120 mm at 2.5 m distance |
|
|
Test Distance |
2.5 – 3 m |
|
|
Test Duration |
1 min per m² of enclosure surface (minimum 3 min) |
|
|

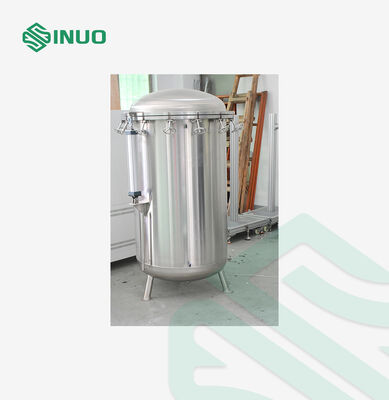

IPX7 – IPX8 Immersion Test |
Water Tank Material |
Stainless steel or pressure-resistant material |
|
Tank Dimensions |
800 * 800 * 1500 mm (W * D * H) |
|
|
Maximum Pressure Depth |
Equivalent to ≥10 m water depth |
