Conforms to IEC-60068-2-27 MIL-STD-202F, MIL-STD-810F, MIL-STD-883, etc.
This machine is mainly suitable for shock resistance testing in fields such as electronic products, aerospace, marine, automotive components, and transportation. With a waveform generator, it can perform half-sine shock tests.

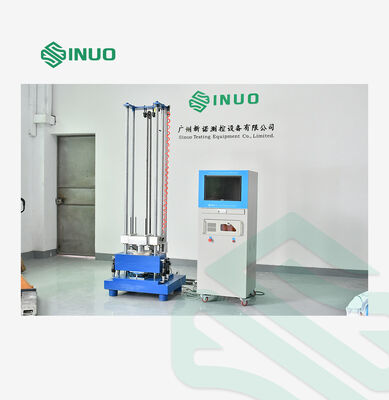

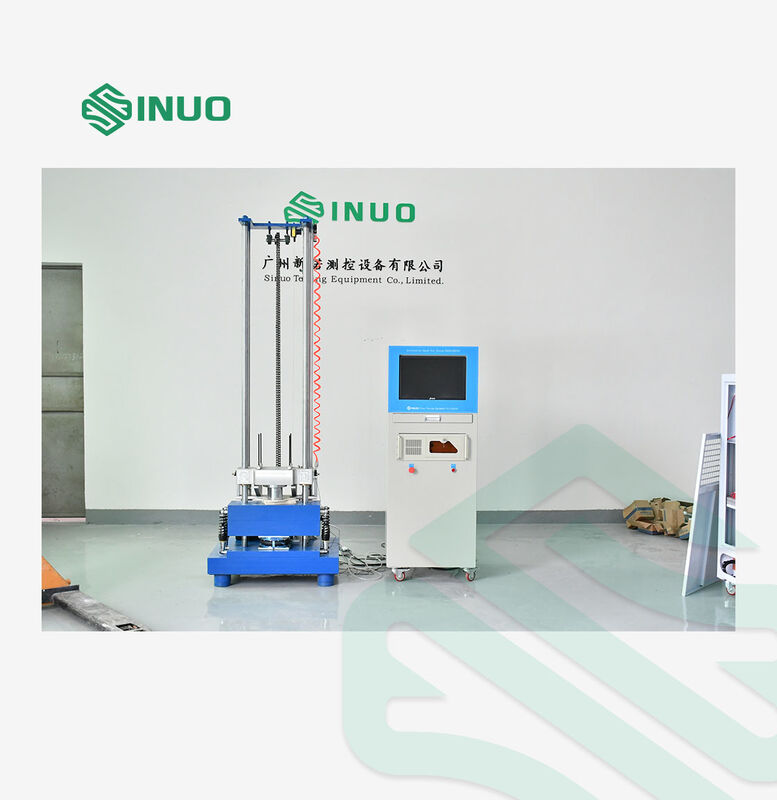

The electric vertical shock test system for lifting consists of four parts: the shock table body, the motor, the measurement control system and the waveform generator. The system composition diagram is shown as follows:

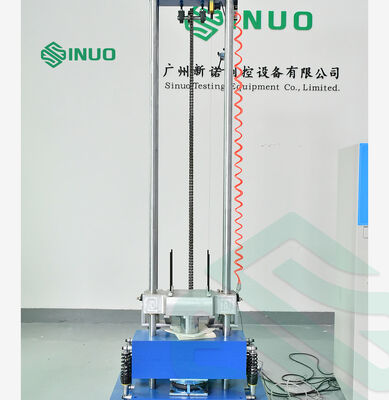

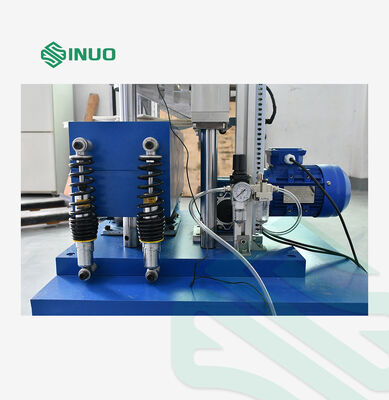

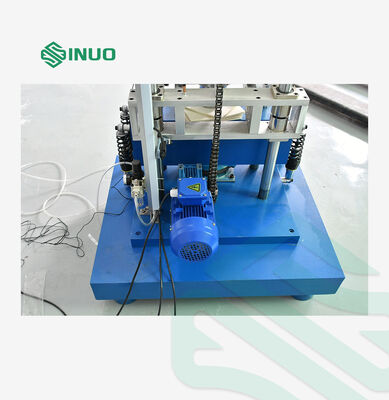

The motor drives a chain to lift the table to a preset height. The table then falls freely and collides with the waveform generator to produce a shock waveform.
Half Sine (Half-Sine Wave): △v=0.636AD×10-3
Trapezoidal : △v=0.5AD×10-3
Saw Tooth : △v=0.9AD×10−3
A = Peak Acceleration (g)
D = Shock Pulse Duration (ms)
| Peak Acceleration vs.Pulse Duration Table | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Peak Acceleration A (gn) | 5 | 15 | 30 | 30 | 30 | 50 | 50 | 100 | 100 | 200 | 200 | 500 | 1000 | 1500 | 3000 |
| Pulse Duration D (ms) | 30 | 11 | 18 | 11 | 6 | 11 | 3 | 11 | 6 | 6 | 3 | 1 | 1 | 0.5 | 0.2 |
| Platform Size | 500×500 mm |
| Platform Material | High-strength aluminum alloy |
| Max Load | 50kg |
| Peak Acceleration | 15—650 g |
| Pulse Duration | 1.5—30ms |
| Acceleration Non-uniformity of the Tabletop | ≤20% |
| Transverse Ratio of the Tabletop | ≤30% |
| Acceleration & Pulse Tolerance | ≤20% |
| Velocity Change Tolerance | ≤15% |
| Equipment Dimensions | 950 × 1250 × 2250mm |
| Equipment Weight | 2500 kg |
| Measurement System | |
| Input Channels | 2 |
| Sampling Rate | 192KHz |
| Input Type | Voltage / Charge |
| Voltage Range | -10V ~+10V |
| Coupling Mode | AC,DC,ICP |
| Shock Waveform | Half-sine |
| Communication Interface | USB2.0 |
| Supports Standards | GB , GJB, MIL-STD, user-defined custom standards |
| Operating System | Microsoft Windows7/10 |
| System Acceleration Sensor | |
| Brand | YMK |
| Output Type | Charge Mode |
| Sensitivity: | 3.93pC/g |
| Frequency Range | 0.5—12KHz |
| Acceleration Range | ±2500g |
| Operating Environment | -40~ +160℃ |
| Additional Specifications | |
| Power Supply | Single-phase 220V ±10% |
| Compressed Air | 0.5—0.8Mpa |
| Temperature | RT～40℃ |
| Humidity | 25℃＜85RH％ |
