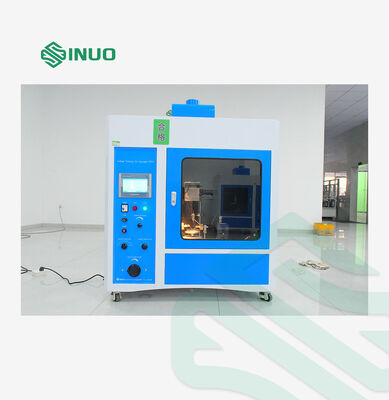

IEC 60112 Compliant Leakage Tracking Tester For Electrical Machines & Insulating Materials
Complied Standard & Clauses
The tester is designed and manufactured according to the standard requirements of IEC 60112, it is required by IEC60335-1 clause 29.2 and Annex N, IEC 60065:2014 clause 13.4, IEC60598-1, IEC 60884-1, UL746A and ASTM D3638-92 and etc.
Product Information
The working principle of the leakage tracking test (tracking index testing) is that the conducting liquid (0.1%NH 4 CL) of required volume in the required height (35mm) and required time (30s) drops with the voltage between the platinum electrodes (2mm × 5mm ) on the surface of solid insulating material. Thus the users evaluate the tracking resistance performance of solid insulating material surface under the combined influence of electric field and humid or contaminate medium. In a word, this device is used to measure the compare tracking index (CT1) and electrical resistance index(PT1).

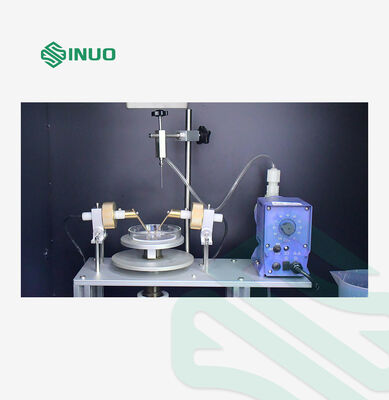

A gauge block is supplied with the instrument to ensure the electrodes have the proper distance between them. The table height is easily adjustable to ensure the proper angle of the electrodes and height of drops. The rest of the test is controlled from outside the test chamber with the door closed. The voltage, limiting current, drip rate and number of drips are all set on the control panel. An operator should observe the test to see if a flame ignites. The instrument sounds an alarm if there is a tracking failure of at least two seconds.

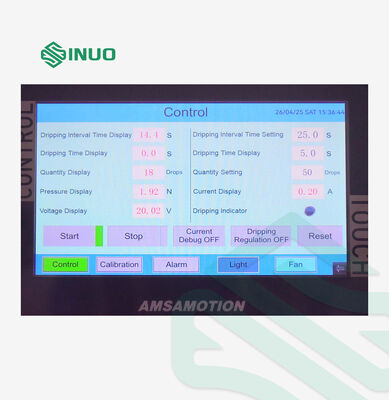

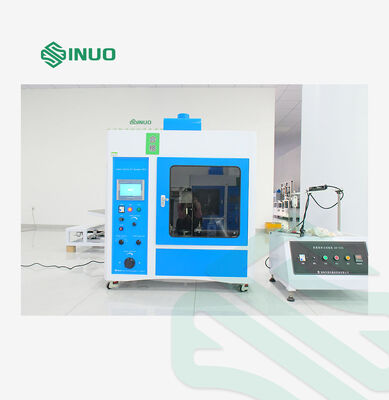

The leakage tracking tester adopts to PLC control system and 7” color touch screen, it is suitable for the research, production and quality department of lighting equipment, low-voltage apparatus, household appliance, machine tool electric appliance, electrical machine, electric tool, electronic instrument, electrotechnical instrument, information technology equipment. It is also suitable for the industry of insulating material, engineering plastics, electrical connector and accessories.
Model specification and technical parameters
| Parameter model | SN774 (0.5m³) |
| Working voltage | AC 220V±10% / 50Hz,1KVA |
| Control | PLC |
| Display | 7 inch color touch screen |
| Testing voltage | 0～600V adjustable,precision 1.5％ |
| Timing device | 9999X0.1S |
| Electrode | Platinum electrode , one pair |
| Platinum Electrode dimension | (5±0.1) x(2±0.1)x(5)mm, 30°slant |
| Electrode included angle and distance | 60°±5°, distance is (4±0.1 ㎜) |
| Electrode pressure | 1.00N±0.05N The pressure can be adjusted and the value can be measure and real-time displayed on the touch screen
|

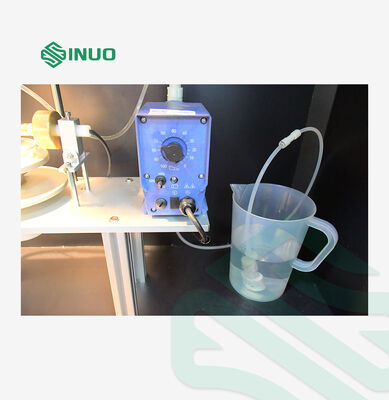

| Dropping liquid control | Controlled by an micropump The dropping liquid volume and interval are accurate Micropump brand: Prominent
|
| The interval of dropping liquid | 30±5S, adjustable |
| Dropping liquid height | 35±5mm |
| Dropping liquid delay | 0.2S(solenoid valve opening time) |
| Dropping liquid size | 45～50 drip/cm3 |
| Time-delay circuit | 2±0.1S(in 0.5A or larger current) |
| Short-circuit pressure drop | 8% MAX |
| Short-circuit current | 1±0.1A 1％ |
| Wind speed | 0.2m/s |
| Environmental requirement | 0～40℃, relative humidity≤80%, in the place of no obvious vibration and corrosive gas |
| Equipment size & weight | 1100mm* 550mm* 1100mm, 180KGS |
| conforms to standard | IEC60695, IEC60112, IEC 60598-1, IEC 60884-1, UL746A, ASTMD3638, etc. |
