| Tên thương hiệu: | Sinuo |
| Số mẫu: | SN552CTS-20V5A |
| MOQ: | 1 |
| giá bán: | có thể đàm phán |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 10 bộ mỗi tháng |

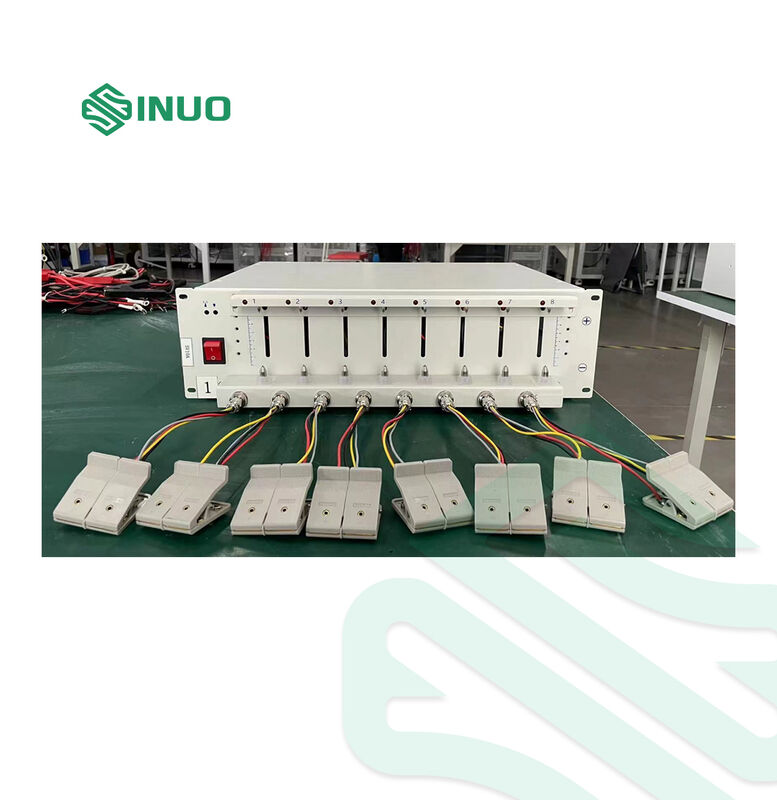

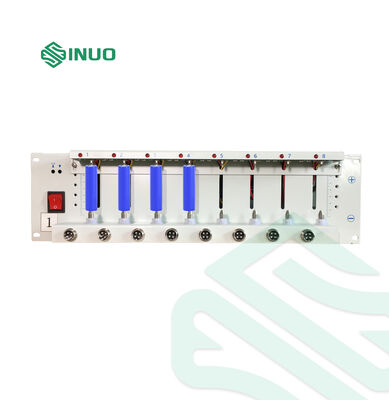

The battery testing system is specifically designed for power batteries and battery packs, meeting various performance testing requirements with high power, precision, and performance characteristics.
| Parameter | Specifications |
|---|---|
| Channels | 8 |
| Channel Control Method | Independent control for each channel, with four-wire measurement for current and voltage collection |
| Channel Features | Constant current source and constant voltage source use a dual closed-loop structure |
| Input Impedance | ≥ 1 MΩ |
| Voltage Range | Charging: 0V-20V (device port) Discharging: 2V-20V (device port, minimum discharge voltage depends on wire length) |
| Voltage Accuracy | ±0.05% of FS, ambient temperature 15℃-35℃ |
| Current Range | Charging: 0.0125A-5A Discharging: 0.0125A-5A |
| Current Accuracy | ±0.05% of FS, ambient temperature 15℃-35℃ |
| Power | Single Channel Output Power: 100W |
| Stability | 0.2% of FS |
| Current Response Time | ≤10ms |
| Data Recording Frequency | 1Hz |
| Data Recording Conditions | Minimum Time Interval: 1S, Minimum Voltage Interval: 1mV, Minimum Current Interval: 1mA |
| Parameter | Specifications |
|---|---|
| Cooling Method | Fan Cooling |
| Device Noise | ≤50dB |
| Communication with Host | Network Communication |
| Operating Temperature Range | 0℃-40℃ |
| Storage Temperature Range | -10℃-50℃ |
| Operating Humidity | ≤70% RH (no condensation) |
| Storage Humidity | ≤80% RH (no condensation) |
| Input Active Power | 800W |
| Input Power Supply | AC220V±10%/50Hz, other power specifications optional |
| Fixture Type | Polymer fixture or crocodile clip (optional) |
